Product Details:
Payment & Shipping Terms:
|
| Type: | Fiber Pigtails | No. Of Fiber: | 2. |
|---|---|---|---|
| Use: | FTTX | COLOR: | YELLOW |
| Standard: | Standard | Cable Diameter: | 3.0mm, 2.0mm, 0.9mm |
| Cable Length: | 1, 2, 3 Meter Or Customized | Repeatable: | 0.1dB (1000) |
| SC-FC SM Patch Cord: | PVC, LSZH, OM3, OFNR, OFNP, Plenum Optional | Return Loss: | >=50dB(PC) |
| Insertion Loss: | ≤0.3dB | Connector Type: | FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, S |
| Ferrule End-face: | PC, UPC, APC | Port: | SHENZHEN |
| High Light: | 0.9mm Optical Duplex Patch Cord,ST-SC Optical Duplex Patch Cord,FTTX SM Fiber Optic Jumper |
||

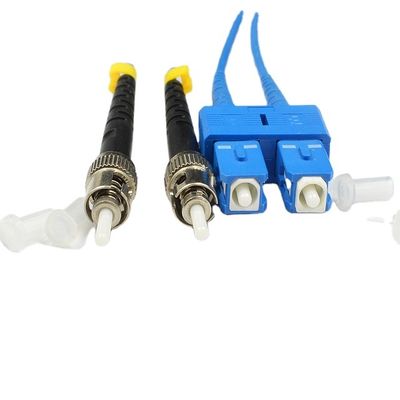

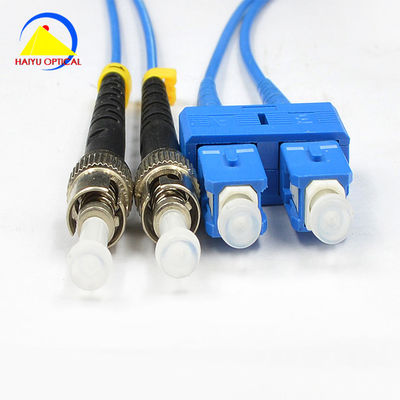

Fiber Optic Duplex Patch Cord ST-SC
2.0mm/3.0mm loose tube
1:SX/DU-SM/MM
2:0.9/1.8/2.0/2.4/3.0mm-Various color
3:OEM offered
4:ROHS, ISO9001
5. Custom length
1.Description
Haiyu Optical’s Connectors are built under test of industrial standard, meet TIA/EIA-568-8.3 AND iso/iec 11801:202 Ed2.0, Telcordia (Belicore) GR-326-Core. Singlemode fiber connectors and patch cord requirement. IEC874-1 fiber connector and cable instruction, based on TIA/EIA-568 standard on A-8 designing, 568SC ZIP patch cords are internal cross-over, A-B to B-A, suitable for MTRJ-MTRJ and LC-LC and hybird patch cord. (568SC-ST, 569SC-MTJ and MTRJ-ST compatible duplex patch cord). All patch cords are label with printing on the cable.
2.Feature
Lower Insertion Loss
High Return Loss
Excellent Repeatability ,exchangeability, wearability and stability
Environmentally Stable
3.Applications
Telecommunications or Data communications
Telecommunications, Military industry, Medical,
CATV, LAN, MAN, WAN, Test & Measurement
Systems Integration for Railway, Metro and Access Network
Fiber to the Indoor (FTTX) Test
4.Fiber Optic Patch Cord Availabilities:
Full specifications, FC, SC, ST, LC, MTRJ, E2000, DIN, D4, SMA, etc.
Simplex and Duplex assemblies available
Singlemode and multimode available
PC, UPC and APC polishing available
PVC and LSZH outer sheath.
0.9mm, 2.0mm and 3.0mm cable size.
Hybrid patch cords are available upon request
Fan-out available (Ribbon type / bundle type)
Pigtail available
Loopback available
Customized length
5.Specification:
| Single-mode | Multimode | |||
| PC | UPC | APC | PC | |
| Insertion Loss | ≤0.1dB | ≤0.1dB | ≤0.1dB | ≤0.1dB |
| Return Loss | ≥50dB | ≥50dB | ≥60dB | ≥35dB |
| Operating Wavelength | 1310nm, 1550nm | 850nm,1300nm | ||
| Repeatability | ≤0.1dB | |||
| Working Temperature | -40℃~+75℃ | |||
| Service Life | >1000 mating cycles | |||
Contact Person: Bai
Tel: 18680387150
