All Types of Connectors Fiber Optic Patch Cables Single Mode Multimode

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

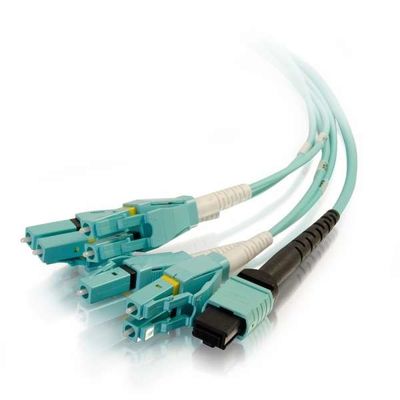

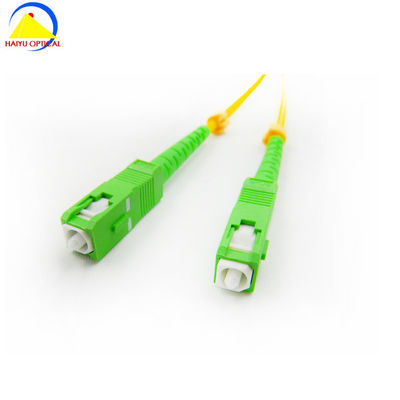

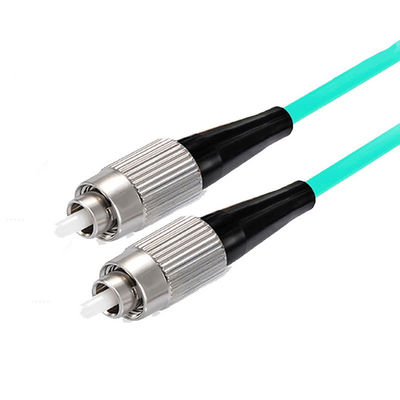

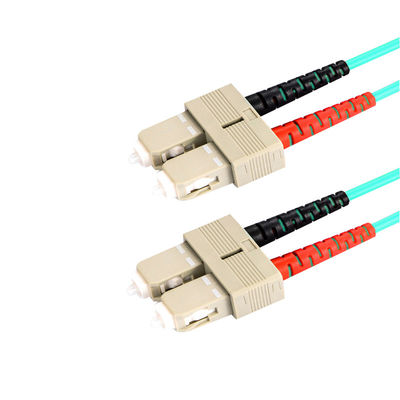

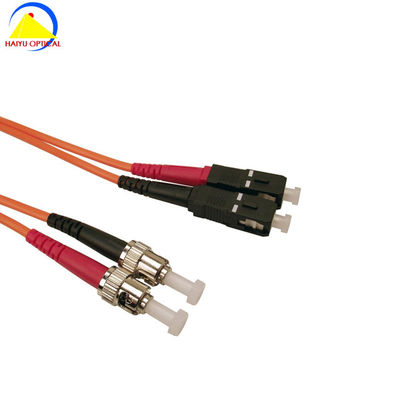

Large Image :  All Types of Connectors Fiber Optic Patch Cables Single Mode Multimode

Product Details:
Place of Origin: Guangdong, China
Brand Name: HYG
Certification: ISO9001, CE, ROHS
Model Number: HYG-1023
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece/Pieces
Price: $1.22 - $5.76 / Piece
Packaging Details: Neutral Packing,3000pcs/ctn,paper ctn,SM/MM Sx/Dx Fiber Optic Patch Cord Cable Pigtail/ Fiber Optic Network Cables/ Fiber Optic Cables Manufacturers
Supply Ability: 100000 Piece/Pieces per Month SM/MM Sx/Dx Fiber Optic Patch Cord Cable Pigtail/ Fiber Optic Ne
Detailed Product Description
Type: Fiber Optic Patch Cord Cable Mode: SM/MM
Length: 1-100M Wire Diameter: 3.0 Mm
Insertion Loss: <=0.2 DB Return Loss: >=55 DB
Operating Temp Range: -40~85°C Wavelength: 1310/1550 Nm
Port: Shenzhen
High Light:

Ftth Multimode PLC Splitter

,

LSZH Singlemode Patch Cord

,

FTTX Fiber Optic Patch Cord

All Types of Connectors Fiber Optic Patch Cables Single Mode Multimode



1.FC/SC/LC/ST/MTRJ/SMA/E2000/D4/MPO/MTP



2.Singlemode & Multimode(SM/MM)



3.PC & APC



4.Length(Optional)

  SM/MM Sx/Dx Fiber Optic Patch Cord Cable Pigtail/ Fiber Optic Network Cables/ Fiber Optic Cables Manufacturers

Features

fiber jumper is one of the most commom components connecting from the equipment to the fiber optic lind .It is mormally used between the optical line teminal with the optical cable terminal box with thick protection layer.

1.Using high precision ceramic ferrule

2.rubbing exactitude and testing completelly

3. low insertion loss and high return loss

4. high stability and repeat

5.be according with the telcordia GR-326-CORE standard

6.ferrule:excellent quality and high intensity zirconium dioxide ceramic ferrule

  SM/MM Sx/Dx Fiber Optic Patch Cord Cable Pigtail/ Fiber Optic Network Cables/ Fiber Optic Cables Manufacturers

Product application

1. Local Area Network

2.Data communication network

3.Telecommunication optical transmission network

4.Optical access network(OAN)

5.Active device termination

6.CATV

7.Fiber optics data transmission(FODT)

  SM/MM Sx/Dx Fiber Optic Patch Cord Cable Pigtail/ Fiber Optic Network Cables/ Fiber Optic Cables Manufacturers

Ordering information

Face grinding:PC/UPC/APC

Fiber diameter :0.9mm/2.0mm/3.0mm

Length/colour/fibertype:according to customer's requiment

  SM/MM Sx/Dx Fiber Optic Patch Cord Cable Pigtail/ Fiber Optic Network Cables/ Fiber Optic Cables Manufacturers

Parameters

Connector type FC,SC, ST, LC,MU
Fiber type Sinle-mode
Operation wave length 1310nm or 1550nm
Insertion loss ≤0.25db
Return wave loss ≥50db
Mechanical testing

Vibration:10-55hz,0.75mm single amplitude,30min each direction



Drop test   Drop highth:1m, fiber longth:1m, drop time:5 times



Durability  1000 times



Anti-pull power :90N

Storage temperature  -40-+80°c
Operation temperature

 -40-+80°c



  SM/MM Sx/Dx Fiber Optic Patch Cord Cable Pigtail/ Fiber Optic Network Cables/ Fiber Optic Cables Manufacturers
