Product Details:
Payment & Shipping Terms:
|
| Type: | Fiber Optic Transceivers | No. Of Fiber: | 1. |
|---|---|---|---|
| Use: | FTTP | Wavelength: | 1310nm, 1550nm |
| Rate: | 10/1000M | Fiber Mode: | Single Mode |
| Transmission Length: | 20Km | Connector Type: | SCUPC |
| Power: | External&Internal | Cores: | Sinplex |
| Classcification: | Cards, Rack Mount | Product Name: | Fiber Media Converter |
| Port: | Shenzhen | ||
| High Light: | SX 20KM fiber media converter,100M fiber media converter,SCUPC Optical Fiber Media Converter |
||
10/100M SM SX 20KM Fiber Optical Meida Converter Price
Product Information:
| Band Width | RJ 45 Port:10/100Mbps | Optical Port: 155Mbps |
| Standard Protocol | IEEE802.3 10 Base-T standard | |
|---|---|---|
| IEEE802.3u 10/100Base-TX/FX standard | ||
| IEEE 802.3X standard. | ||
| Connectors | UTP RJ-45 | SC/ST/FC Fiber connector |
| Operation Mode | Full /Half duplex mode | |
| Power Supply | External 5V DC 1A | |
| Internal AC220V/50Hz | ||
| Power Consumption | ≤5W | |
| Environmental Parameters | Work Temperature | -30°C~+65°C |
| Storage Temperature | -40°C~85°C | |
| Humidity | 5%~90% | |
| TP Cable | Cat5 UTP cable | |
| Fiber | Single-mode: 8.3/125, 8.7/125, 9/125 or 10/125μm | |
| Dimensions(mm) | External power supply | 95*70*26 |
| Internal power supply | 115x110x30 | |
| Product Model | Transceiver Type | Wave Length | Distance | ||
|---|---|---|---|---|---|
| HYG-S1-20 | SM | 1310nm | 20 km | -6~-12 dbm | ≤-24 dBm |
| HYG-S1-40 | SM | 1310nm | 40 km | -3~-8 dbm | ≤-24 dBm |
| HYG-S2-60 | SM | 1550nm | 60 km | -6~-0 dbm | ≤-24 dBm |
| HYG-S3-5 | MM | 850nm | 500 m | -6~-12 dbm | ≤-24 dBm |

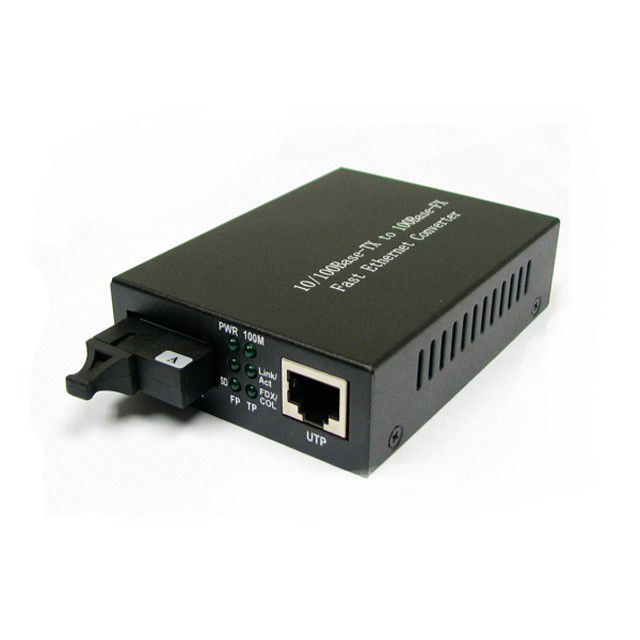

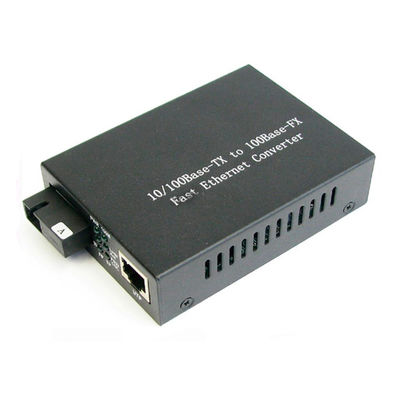

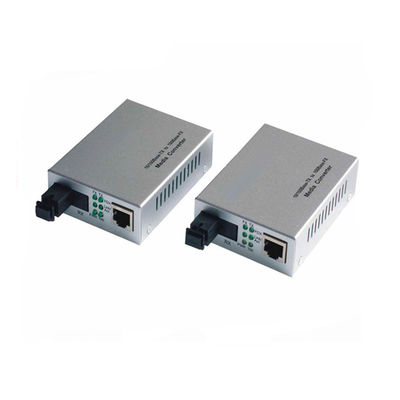

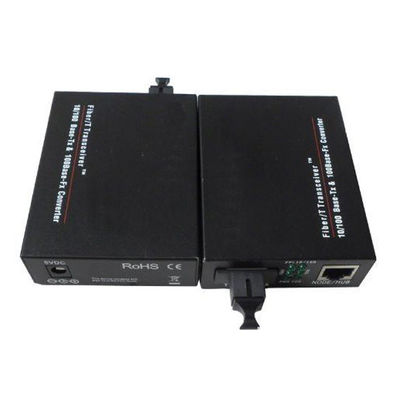

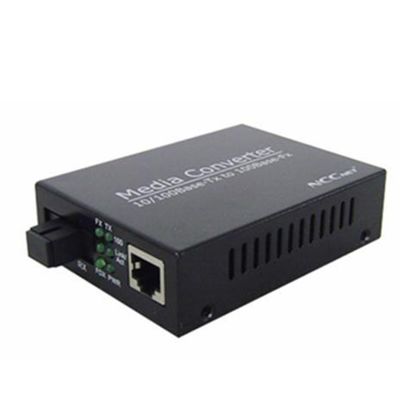

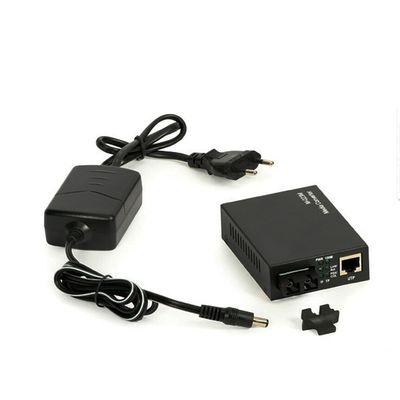

Fiber converter pictures:
Haiyu Optics, founded in 2007, is focus on design and manufactured fiber optic communication products. It has developed a range of
products including fiber optics like patch cord, adapters attenuator and splitters, optical transceiver modules, media converter, video
transmitter &receiver and FTTH equipments. Widely used in telecom communication, mobile communication, network solution and television
Milestones
2007 Haiyu optics communications technology co., ltd was established in Hongkong.
2009 Shenzhen Haiyu optics communication equipment co., ltd was established in Shenzhen China
Plant area and No. of employees
Amount 2,000 Square meters, around 300 employees in total.
OEM & ODM is accepted, any questions welcome to contact us.
