Product Details:
Payment & Shipping Terms:
|
| Product Name: | MTP MPO Fiber Optic Patch Cord | Length: | 1m, 2m,5m,10m Or Custom |
|---|---|---|---|
| Color: | Aqua | Fiber Type: | 50 / 125 OM3 |
| Fiber Count: | 12 Cores | Connector: | MPO Female Pinless |
| High Light: | 12 Cores MTP MPO Patch Cable,50/125um MTP MPO Patch Cable,Aqua OM3 Multimode Patch Cord |
||
MTP MPO Fiber Optic Patch Cord description:
MTP MPO Fiber Optic Patch Cord is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.
MTP MPO Fiber Optic Patch Cord specification:
| Parameters | Min. | Typical | Max. | Unit. | |
| Operating Wavelength | Single Mode | 1310 | 1620 | nm | |
| Multi-mode | 850 | 1310 | |||
| MPO Insertion Loss | Single Mode | 0.6 | dB | ||
| Single Mode Low Loss | 0.3 | 0.35 | |||
| Multi-mode | 0.75 | ||||
|
Single Fiber Insertion Loss (Fan-out side) |
Single Mode | 0.2 | dB | ||
| Single Mode Low Loss | 0.3 | ||||
| Multi-mode | 0.3 | ||||
| Return Loss | Single Mode | 50 | dB | ||
| Single Mode Low Loss | 60 | ||||
| Multi-mode | 30 | ||||
| Operating Temperature | - 20 | + 70 | °C | ||
| Fiber Type |
SM ITU-T G652 and IEC 60793-2-50 B1.3 SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2 |
||||
| Cable Jacket Type | Ribbon / Fan-out | PVC | |||
| Cable Jacket Color | Yellow | G652 and G657 Single mode fiber | |||
| Orange | OM2 Multi-mode fiber | ||||
| Aqua | OM3 fiber | ||||
| Flammability Rating | IEC-60332-1, IEC-61034, IEC-60754-1 and 2 | ||||
Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.
MTP MPO Fiber Optic Patch Cord features:
MTP MPO Fiber Optic Patch Cord Applications:

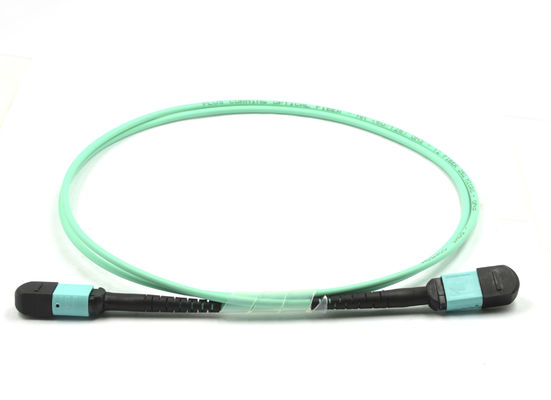

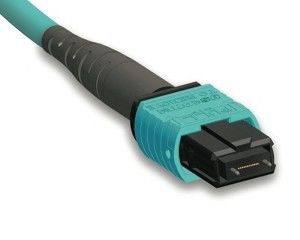

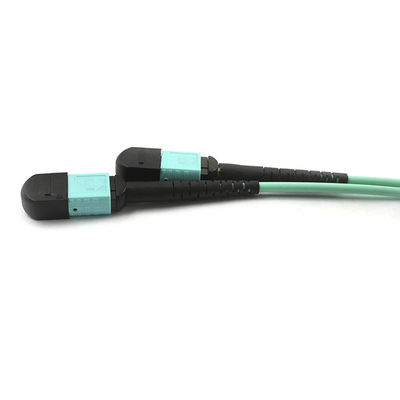

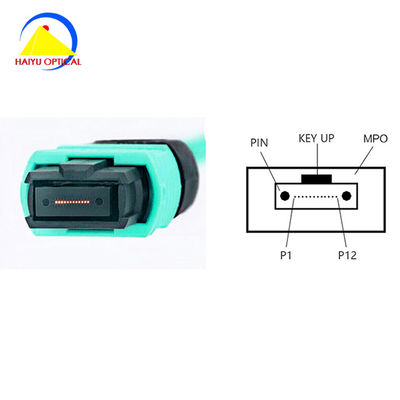

MTP MPO Fiber Optic Patch Cord pictures:
