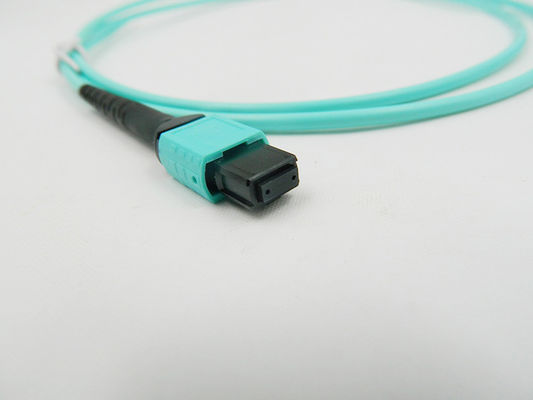

1550nm 0.5M 12 24 48 Core Mpo Lc Fiber Optic Patch Cord

Large Image : 1550nm 0.5M 12 24 48 Core Mpo Lc Fiber Optic Patch Cord

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Haiyu Optical
Model Number:	HYG-ST-FC-SMDX-3.0-1.5M

Payment & Shipping Terms:

Minimum Order Quantity:	10 Piece/Pieces
Price:	$15.00 - $69.00 / Piece
Packaging Details:	Neutral Packing 500pcs/ctn 1pc/bag
Supply Ability:	100000 Piece/Pieces per Month also we can produce other size

Contact Now

Detailed Product Description

Cable Color:	Aqua	Core Quanlity:	12, 24, 48
Cable Mode:	MM	Length:	0.5M
Wire Diameter:	2.0/3.0 Mm	Insertion Loss:	<=0.2 DB
Return Loss:	>=55 DB	Connector Type:	Mpo And Lc
Operating Temp Range:	-40~85°C	Wavelength:	1550nm
Port:	Shenzhen
High Light:	Mpo Lc Fiber Optic Patch Cord , 1550nm Fiber Optic Patch Cord , 0.5M Optical Fiber Patch Cord

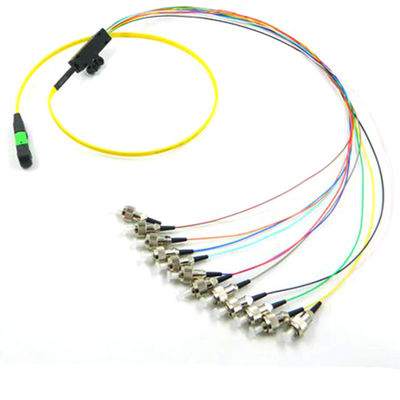

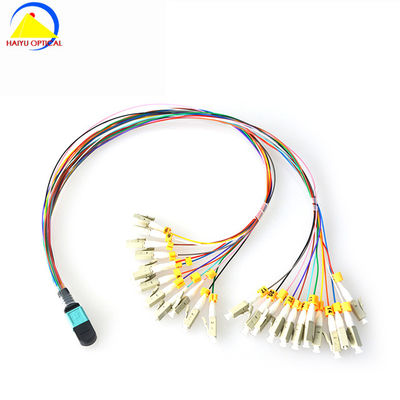

12 core 24 core 48 core mpo-lc fiber optic patch cord for network solution

Product Description

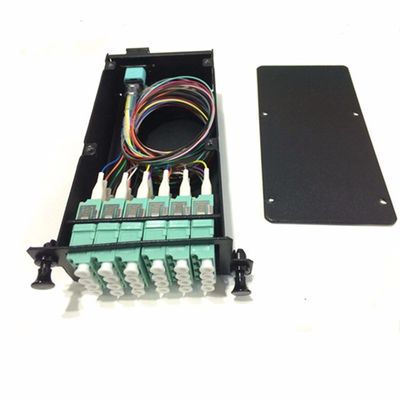

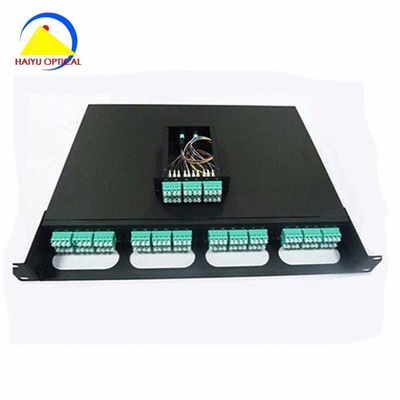

MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.

Product parameter

	Single-Mode Fiber			Multi-Mode Fiber
	PC	UPC	APC	PC
Insertion Loss	≤0.7 dB	≤0.7 dB	≤0.7 dB	≤0.6 dB
Return Loss	≥40 dB	≥50 dB	≥60 dB	N/A
Operating Wavelength	1310nm & 1550nm			850nm & 1300 nm
Repeatability	≤0.1 dB
Working Temperature	-20~+60°C
Service Life	>1,000 mating cycles

Applied range

1 Optical fiber communication system

2 Optical access network

3 Optic-fiber Date Communication

4 Optical-fiber CATV

5 A local area network (LAN)

6 Test Equipment

Environmental Reliability Test

The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others
