Product Details:
Payment & Shipping Terms:
|
| Length: | 1m | Color: | Yellow |
|---|---|---|---|
| Fiber Type: | 9 / 125 Sm | Fiber Count: | 12 Cores |
| Certification: | CE/ROHS/ISO9001 | Connector Type: | MPO,FC |
| Application: | FTTH FTTB FTTX Network,Telecom/network | Product Name: | High Quality Mpo Sm Fc/sc/st/lc Fiber Optic Patch Cord Lc-lc Duplex |
| High Light: | fiber optic jumper,outdoor fiber patch cord |
||

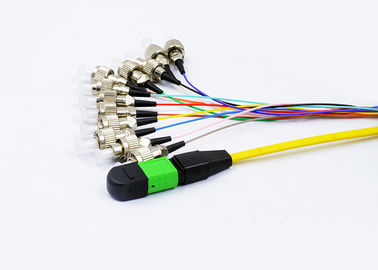

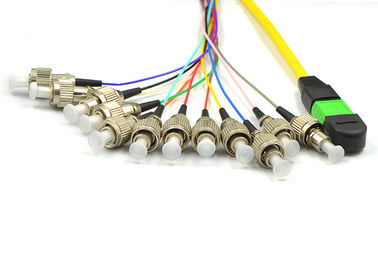

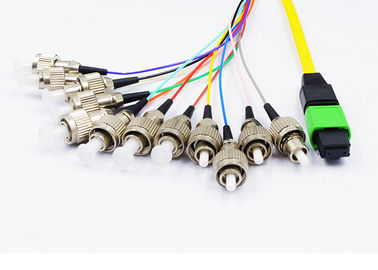

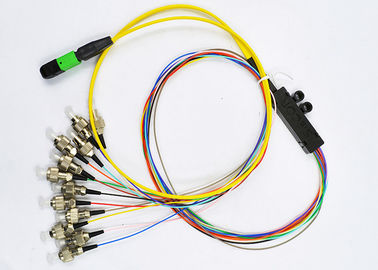

Singlemode 12 Cores MPO-FC Interface 9/125 MPO Fiber Optic Patch Cord
Specification:
|
PERFORMANCE INDEX
|
|||
|
MPO CONNECTOR
|
|||
|
Fiber type
|
SM
|
MM
|
|
|
UPC
|
APC
|
PC
|
|
|
Insertion Loss (IL)Low(dB)
|
≤0.35
|
≤0.35
|
|
|
Insertion Loss (IL)Max(dB)
|
≤0.75
|
≤0.6
|
|
|
Return Loss (RL)(dB)
|
≥50
|
≥60
|
≥20
|
|
Endurance (500 remates)(dB)
|
IL<0.3
|
IL<0.2
|
|
|
Operating Temperature(℃)
|
-10 ~ +60
|
||
|
Storage Temperature(℃)
|
-40 ~ +85
|
||
|
Maximum tensile strengthe(N)
|
100
|
||
| FC CONNECTOR | |||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.
1.High repeatability & credibility
2.Competitive price
3.Fast delivery time
4.Low insertion loss
1,Optical fiber communications systems;
2,Optical fiber access network;
3,Optical fiber CATV.
4,Optical fiber test equipments;
5,Optical fiber data communications;
Environmental Reliability Test
The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others
