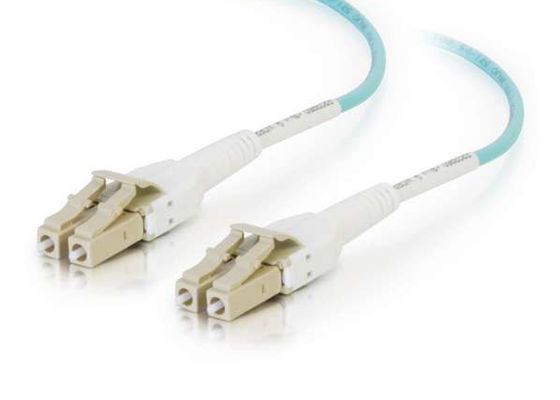

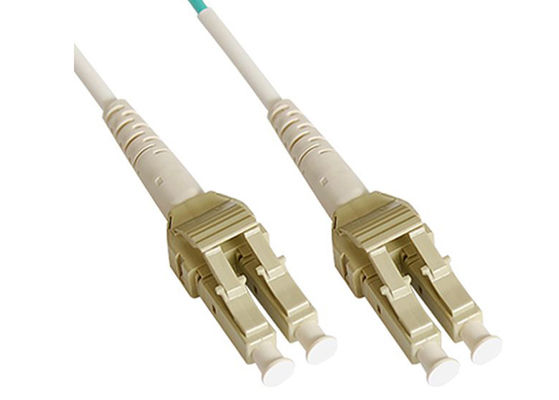

Uniboot LC-LC OFNP Multimode Fiber Patch Cord 0.9mm Wire

Large Image : Uniboot LC-LC OFNP Multimode Fiber Patch Cord 0.9mm Wire

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HYG
Certification:	ISO9001, CE, ROHS
Model Number:	HYG-LP-002

Payment & Shipping Terms:

Minimum Order Quantity:	10 Piece/Pieces
Price:	$2.99 - $10.50 / Piece
Packaging Details:	3000pcs/ctn,ctn size:604030cm
Supply Ability:	100000 Piece/Pieces per Month fiber patch cord

Contact Now

Detailed Product Description

Product Name:	50 125 Multimode LC Uniboot For Fiber Optic Patch Cord	Connector Type:	LC Uniboot
Cable Mode:	SM/MM 9/125, 50/125, 62.5/125	Model:	Simplex, Duplex
Cable Color:	Yellow, Aqua, Orange, Gray, Purple, Blue, Green	Length:	0.5M,1M, 3M, 5M, 10M, 100M
Wire Diameter:	0.9mm, 2.0 Mm, 3.0mm	Insertion Loss:	<=0.2 DB
Return Loss:	>=55 DB	Jacket:	PVC, LSZH, OFNP
Port:	Shenzhen
High Light:	OFNP Multimode Fiber Patch Cord , LC-LC Multimode Fiber Patch Cord , 0.9mm Wire Multimode LC Uniboot

Uniboot Type LC-LC Multimode Fiber Patch Cord

Features

Various connector type available

Compact size

Low insertion loss

High Return Loss

Diameter Φ0.9mm, Φ2.0mm, Φ3.0mm Fiber Available

Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)

Application

CATV System

Telecommunications

Optical Networks

FTTH (Fiber to the Home)

High speed transmission Systems

Testing instruments

Specifications

	Single-mode			Multimode
	PC	UPC	APC	PC
Insertion Loss	≤0.3dB	≤0.3dB	≤0.2dB	≤0.2dB
Return Loss	≥50dB	≥50dB	≥60dB	≥35dB
Operating Wavelength	1310nm, 1550nm			850nm,1300nm
Repeatability	≤0.1dB
Working Temperature	-40°C~+75°C
Service Life	>1000 mating cycles
