Singlecore Silica Optical Fiber Cleaver For 125μM Bare Fiber

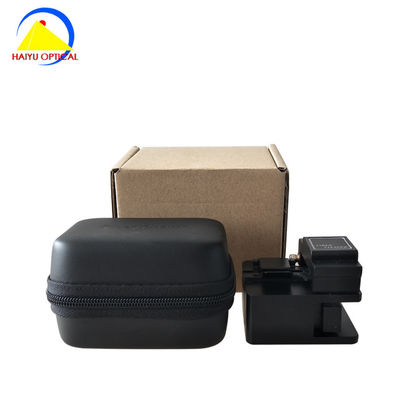

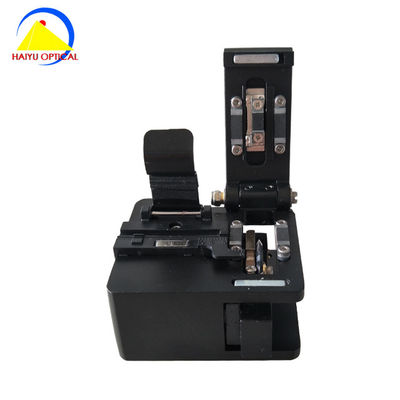

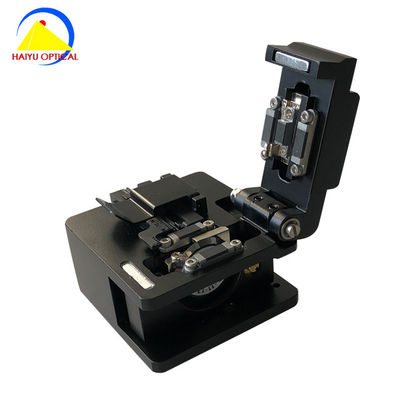

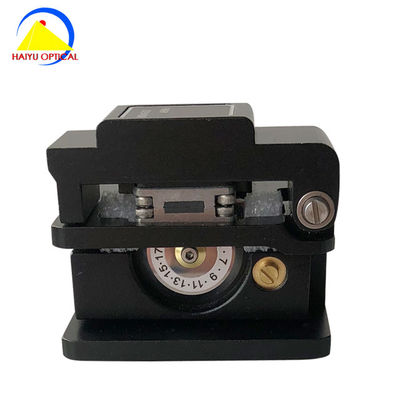

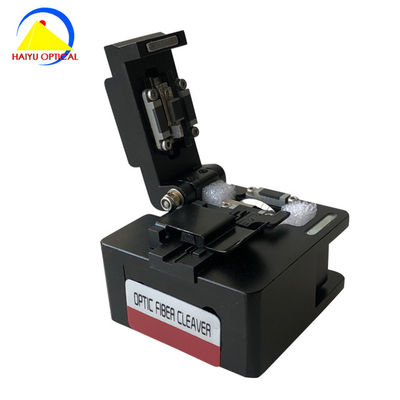

Large Image : Singlecore Silica Optical Fiber Cleaver For 125μM Bare Fiber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HYG
Model Number:	HYG-FC Clever

Payment & Shipping Terms:

Minimum Order Quantity:	10 Piece/Pieces
Price:	$50.00 - $80.00 / Piece
Packaging Details:	International standard package
Supply Ability:	100000 Piece/Pieces per Day

Contact Now

Detailed Product Description

Port:

Shenzhen

High Light:

Fiber Cutting Optical Fiber Cleaver

125μm diameter Optical Fiber Cleaver

Singlecore silica optical fiber cutter

Fiber Cutting Tools Optical Fiber Cleaver

The TL-03 Cleaver sets the standard for portable, reliable and ease of use. Available for either single fiber or ribbon splicing (up to 12 fiber ribbons) applications, the TL-03 Cleavers are compatible with all AFL Telecommunications fusion splicers. Designed for excellent portability, the TL-03 is equally at home in a splicing van or in a bucket truck and is ideal for FTTX applications. The 16-position blade yields 48,000 single-fiber cleaves,or 4,000 12-fiber ribbon cleaves before requiring replacement, and the built-in scrap collector conveniently stores fiber shards until they can be safely discarded.

Specification
Adapt to optical fiber	Single-core silica optical fiber
To adapt optical fibercoatingdiameter	φ0.25 & φ0.9
Adapt to the bare fiber diameter	125μm
Cutting the fiber length	10 ~ 16 mm (φ0.25) 10 ~ 16 (φ0.9)
Weight	About 280g
Cutting angle adaptation value	≤ 0.7 °
Dimensions	58mm (W) × 57mm (D) × 53mm (H)
Edge life	3600 times

Dimension:

Singlecore Silica Optical Fiber Cleaver For 125μM Bare Fiber 0
