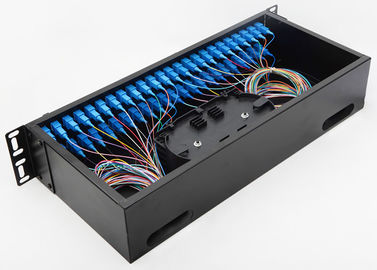

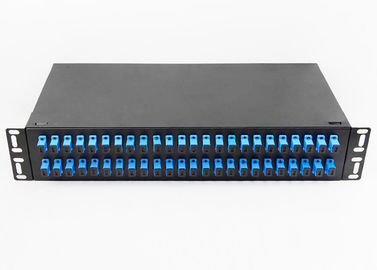

Single Mode 1U Fiber Optic Patch Panel 19 Inch Rack Mounted Type 48 Port

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Single Mode 1U Fiber Optic Patch Panel 19 Inch Rack Mounted Type 48 Port

Product Details:
Place of Origin: Guangdong, China(Mainland)
Brand Name: Haiyu Optical
Certification: ROHS, ISO,CE
Model Number: HYG-PP-48F-2U-007
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: foam with box and carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 2000sets per week
Detailed Product Description
Product Name: Fiber Optic Patch Panel SC Port: 48 Port SC
Height: 2U Material: Cold Rolled Steel
Installation: Rack Mount Fiber Type: Singlemode, Multimode
Operating Temperature: -45℃~+80℃ Warranty: 3 Years
Color: Black,white Application: FTTH FTTB FTTX Network,Telecommunication,
High Light:

mpo patch panel

,

rack mount fiber patch panel

2U 48 Port 19 Inch Singlemode Fiber Optic Patch Panel SC





Specification:





PRODUCT PARAMETERS OF OPTICAL PATCH PANEL
Name
FIBER OPTIC PATCH PANEL
Type2
U 19" rack mouted type
Model
 48 Port
Material
1.3mm sheet metal
Dimension
485*360*90mm
N.W.
8.0kgs
Color
Black, white optional
Working temperature
-45℃~80℃
Loading
48FSC,FC,ST Optional





Description:



This rack-mounted patch panel is compatible with both 19" racks, made of cold rolled steel sheet, electrostatic spraying, provide 12 to 48 single and double adapter, available for SC, FC, ST and Duplex LC.



This model has 3 moveable adapter plate, easy to plug in and out.



Features:

  1. Fits 19" wide rack units
  2. Accepts 2 adapter panels, 2 small splice trays, or 1 large splice tray
  3. Occupies 1 RU
  4. Built-in spool for easy cable management
  5. Constructed of high-quality cold rolled steel sheet



Application:

  1. Optical access network (OAN)
  2. Data processing centers/Cable television (CATV)
  3. Local area network (LAN)
  4. Coarse wavelength division
  5. PLC system
  6. FTTH

Single Mode 1U Fiber Optic Patch Panel 19 Inch Rack Mounted Type 48 Port 0



Package:



Single Mode 1U Fiber Optic Patch Panel 19 Inch Rack Mounted Type 48 Port 1
