Product Details:
Payment & Shipping Terms:
|
Product Name: | OM5 Fiber Optic Patch Cord | Cable Color: | Lime Green |
---|---|---|---|
Fiber Type: | MM OM5 | Fiber Count: | 12 Cores |
Connector: | MPO/MTP | Cable Type: | 3.0mm Round 12F OM5 Cable |
High Light: | 12F MPO Fiber Optic Patch Cord,OM5 MPO Fiber Optic Patch Cord,MTP Female MPO Trunk Cable |
What is OM5 fiber?
According to ISO / IEC 11801, OM5 optical fiber specifies a wider wavelength range between 850nm and 953nm. It was created to support short wave division multiplexing (SWDM), which is one of many new technologies developed to transmit 40Gb / s and 100GB / s. In June 2016, the new broadband multimode fiber standard ANSI /TIA-492AAAE was approved for publication. In October 2016, OM5 fiber was announced as the official name of the wiring containing WBMMF (broadband multimode fiber) of ISO / IEC 11801. Since then, the development momentum of new OM5 broadband multimode fiber types used in buildings and data centers has been strongly promoted in many aspects.
OM5 fiber is a laser optimized multimode fiber (MMF), which specifies the bandwidth characteristics for wavelength division multiplexing (WDM). The purpose of this new fiber classification method is to support a variety of "short" wavelengths between 850nm and 950nm, which are suitable for high bandwidth applications after polymerization.
OM5 optical fiber technology was originally developed for the application of data center. From the current development, it will soon become an ideal choice for building backbone network.
It can not only support 802.11ac Wi Fi system, but also support high-density 5G wireless network.
Why choose OM5 fiber?
1. Om5 fiber is at least as good as OM4 in supporting all traditional applications, and it is fully compatible and interoperable with OM3 and OM4 fiber.
2. Om5 is designed to support at least four low-cost wavelengths in the range of 850-950 nm, so as to optimize the support for emerging short wave division multiplexing (sdwm) applications, reduce the number of parallel fibers by at least four times, use only two fibers (instead of eight) to continuously transmit 40Gb / s and 100GB / s, reduce the number of fibers and achieve higher speed. In the future, SWDM technology may also be used to achieve Ethernet transmission speeds of 200, 400 and 800Gb / s in multimode fiber.
3. Om5 has been sold worldwide, and the pre terminated optical fiber patch cords provided by Yingda have been installed in a variety of network environments, including campus, buildings and data centers.
OM5 fiber Cable
OM5 MPO Fiber Optic Patch Cord specification:
Parameters | Min. | Typical | Max. | Unit. | |
Operating Wavelength | Single Mode | 1310 | 1620 | nm | |
Multi-mode | 850 | 1310 | |||
MPO Insertion Loss | Single Mode | 0.6 | dB | ||
Single Mode Low Loss | 0.3 | 0.35 | |||
Multi-mode | 0.75 | ||||
Single Fiber Insertion Loss (Fan-out side) |
Single Mode | 0.2 | dB | ||
Single Mode Low Loss | 0.3 | ||||
Multi-mode | 0.3 | ||||
Return Loss | Single Mode | 50 | dB | ||
Single Mode Low Loss | 60 | ||||
Multi-mode | 30 | ||||
Operating Temperature | - 20 | + 70 | °C | ||
Fiber Type |
SM ITU-T G652 and IEC 60793-2-50 B1.3 SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2 |
||||
Cable Jacket Type | Ribbon / Fan-out | PVC | |||
Cable Jacket Color | Yellow | G652 and G657 Single mode fiber | |||
Orange | OM2 Multi-mode fiber | ||||
Aqua | OM3 fiber | ||||
Flammability Rating | IEC-60332-1, IEC-61034, IEC-60754-1 and 2 |
Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.
OM5 Fiber Optic Patch Cord features:
-Push-pull latching;
-Easy assembly, no crimp tool needed;
-Alignment achieved with high precision guide pins;
-Designed for low loss and standard loss SM and MM applications;
OM5 Fiber Optic Patch Cord Applications:
-CATV;
-Active device termination;
-Telecommunication networks;
-Metro;
-Local Area Networks(LANs);
-Data Processing networks;
-Test Equipment;
-Premise installations;
-Wide Area Networks(WANs).

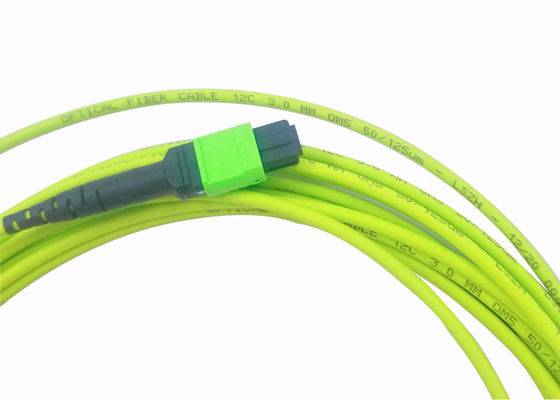

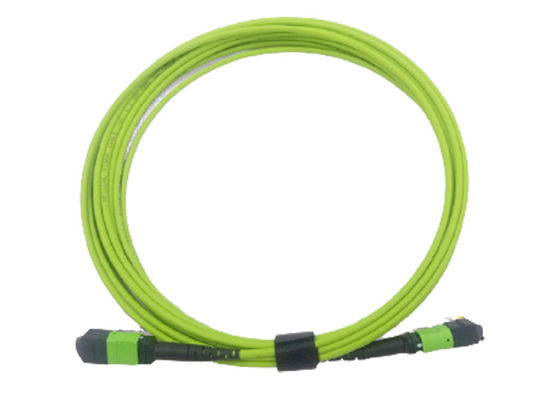

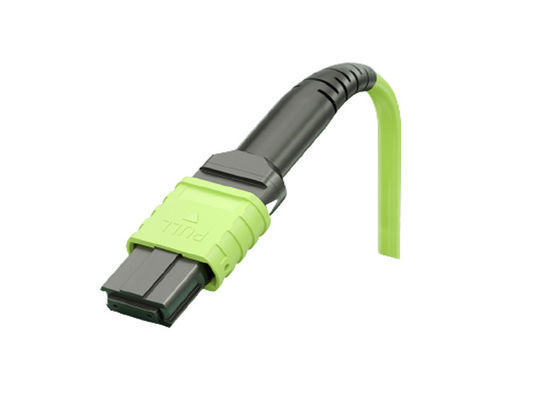

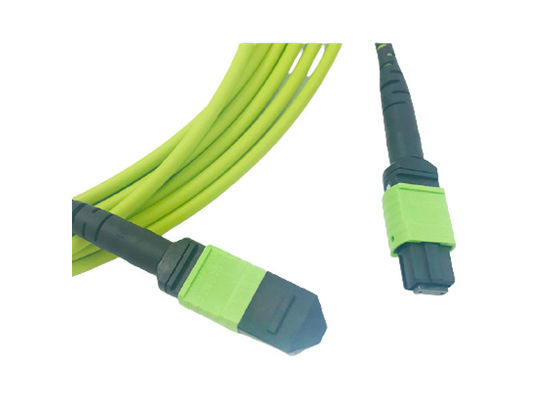

OM5 Fiber Optic Patch Cord pictures:
