Product Details:
Payment & Shipping Terms:
|
| Name: | OM4 8F MPO -8 SC Connector Round Cable MPO-SC Fiber Optic Patch Cord | Color: | Violet |
|---|---|---|---|
| Fiber Type: | 50 / 125 OM4 | Fiber Count: | 8F |
| Connector Type: | MPO,SC | Application: | FTTH FTTB FTTX Network,LAN |
| High Light: | 8F Fiber Optic Patch Cord,OM4 Fiber Optic Patch Cord,MPO SC Fiber Optic Fanout Cable |
||
MPO-SC Fiber Optic Patch Cord Description:
MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.
MPO-SC Fiber Optic Patch Cord Specification:
| Parameters | Min. | Typical | Max. | Unit. | |
| Operating Wavelength | Single Mode | 1310 | 1620 | nm | |
| Multi-mode | 850 | 1310 | |||
| MPO Insertion Loss | Single Mode | 0.6 | dB | ||
| Single Mode Low Loss | 0.3 | 0.35 | |||
| Multi-mode | 0.75 | ||||
|
Single Fiber Insertion Loss (Fan-out side) |
Single Mode | 0.2 | dB | ||
| Single Mode Low Loss | 0.3 | ||||
| Multi-mode | 0.3 | ||||
| Return Loss | Single Mode | 50 | dB | ||
| Single Mode Low Loss | 60 | ||||
| Multi-mode | 30 | ||||
| Operating Temperature | - 20 | + 70 | °C | ||
| Fiber Type |
SM ITU-T G652 and IEC 60793-2-50 B1.3 SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2 |
||||
| Cable Jacket Type | Ribbon / Fan-out | LSZH | |||
| Cable Jacket Color | Yellow | G652 and G657 Single mode fiber | |||
| Orange | OM2 Multi-mode fiber | ||||
| Aqua | OM3 fiber | ||||
| Flammability Rating | IEC-60332-1, IEC-61034, IEC-60754-1 and 2 | ||||
Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.
MPO-SC Fiber Optic Patch Cord Applications:
MPO-SC Fiber Optic Patch Cord Environmental Reliability Test
The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others.

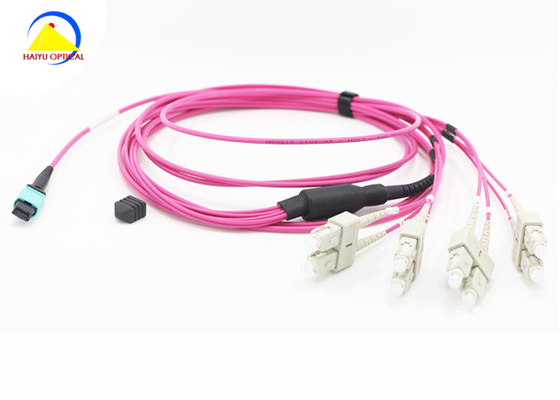

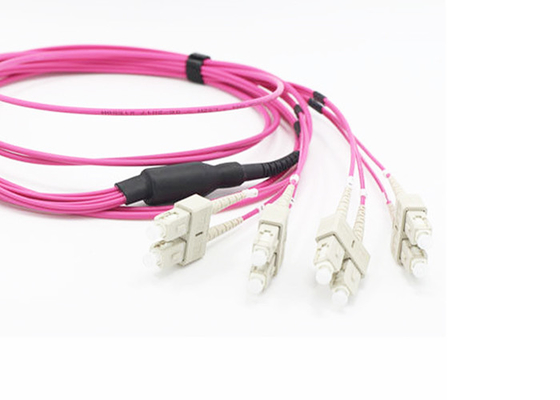

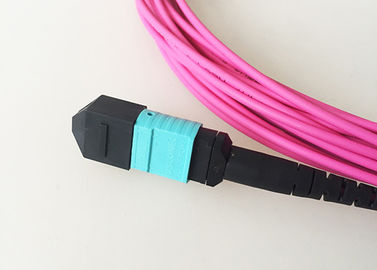

MPO-SC Fiber Optic Patch Cord Pictures:
MPO-FC Fiber Optic Patch Cord Bare Fiber Color:
| No. | 8 Ribbon Fiber | No. | 12 Ribbon Fiber | No. | 12/24 Ribbon Fiber |
| 1 | Blue | 1 | Blue | 1/13 | Blue |
| 2 | Orange | 2 | Orange | 2/14 | Orange |
| 3 | Green | 3 | Green | 3/15 | Green |
| 4 | Brown | 4 | Brown | 4/16 | Brown |
| 5 | Gray | 5 | Gray | 5/17 | Gray |
| 6 | White | 6 | White | 6/18 | White |
| 7 | Red | 7 | Red | 7/19 | Red |
| 8 | Black | 8 | Black | 8/20 | Black |
| 9 | Yellow | 9/21 | Yellow | ||
| 10 | Violet | 10/22 | Violet | ||
| 11 | Pink | 11/23 | Pink | ||
| 12 | Aqua | 12/24 | Aqua |
