| Name: | Outdoor Armored Cable Multimode OM3 10G High Speed MTP MPO FIber Patch Cord | Fiber Count: | 8/12 |
|---|---|---|---|
| Cable Type: | OM3,LSZH | Color: | Black |
| Insertion Loss: | ≤0.35 DB | Application: | FTTH FTTB FTTX Network,Telecom/network,Telecommunication |
| High Light: | Multimode Outdoor Armored Cable,OM3 Outdoor Armored Cable,MTP MPO Fiber Patch Cord |
||

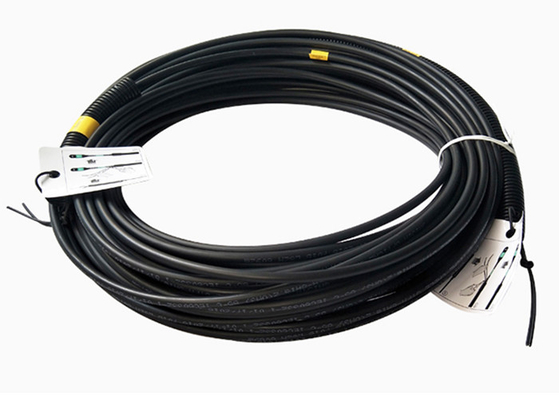

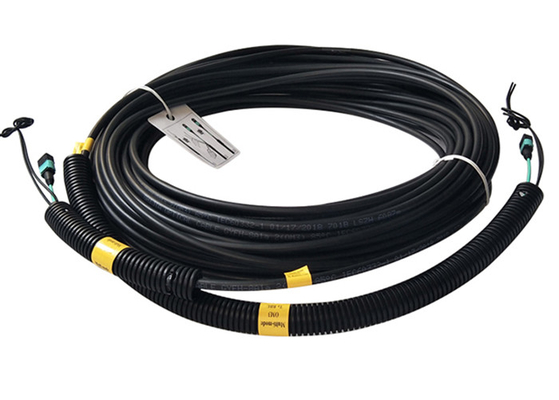

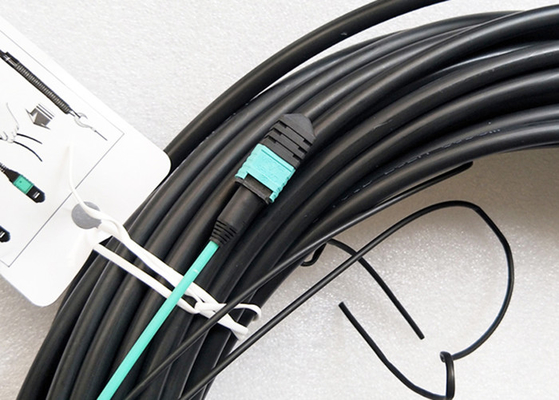

This Outdoor Armored Cable Multimode OM3 10G High Speed MTP MPO FIber Patch Cord are used for the new generation wireless base stations (WCDMA/TD-SCDMA/WiMax/GSM). Such products can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions. Especially in the 3G, 4G, 5G and WiMax base stations and fiber-optic distributed zoom technology, CPRI fiber patch cable are rapidly becoming the standard connector interface.
MPO Fiber Patch Cord Specification:
| Parameters | Min. | Typical | Max. | Unit. | |
| Operating Wavelength | Single Mode | 1310 | 1620 | nm | |
| Multi-mode | 850 | 1310 | |||
| MPO Insertion Loss | Single Mode | 0.6 | dB | ||
| Single Mode Low Loss | 0.3 | 0.35 | |||
| Multi-mode | 0.75 | ||||
|
Single Fiber Insertion Loss (Fan-out side) |
Single Mode | 0.2 | dB | ||
| Single Mode Low Loss | 0.3 | ||||
| Multi-mode | 0.3 | ||||
| Return Loss | Single Mode | 50 | dB | ||
| Single Mode Low Loss | 60 | ||||
| Multi-mode | 30 | ||||
| Operating Temperature | - 20 | + 70 | °C | ||
| Item | Description | Standard | |
| Cable Model | GYFJH-2A1 | ||
| Number Optic-cable Core | 2 | ||
| Weight Kg/km | 45.0 | ||
| Outside Dia. mm | Φ7.0±0.2 | ||
| Outer Sheath | material | LSZH | YD/T 1113-2001 |
| color | BLACK | ||
| thickness | 1mm | ||
| Tight buffer | material | FRP | |
| Dia. mm | Φ1.0±0.1 | ||
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
1. 3G 4G 5G base station used
2. Aerospace & Defence
3. FTTA ,FTTP, FTTX,WIMAX
4. BBU, RRU, RRH, LTE
