Product Details:
Payment & Shipping Terms:
|
| Product Name: | MPO MTP Fiber Optic Adapter | Color: | Black, Yellow, Aqua, Violet |
|---|---|---|---|
| Insertion Loss: | ≤0.3dB | Connector Type: | MPO MTP |
| Sleeve Material: | Zirconia | Housing Material: | Plastic |
| Durability: | 1000 Time Matings | Certification: | ISO9001,RoHS,CE |
| Operating Temperature: | -40 To +85 Degree | Application: | FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia |
| High Light: | MTP Multimode Fiber Optic Adapter,MPO Singlemode Fiber Optic Adapter,Zirconia Sleeve Fiber Optic Adapter |
||
This MPO MTP Fiber optic adapter is used to provide a cable to cable fiber connection for MPO MTP Fibre Patchcord.

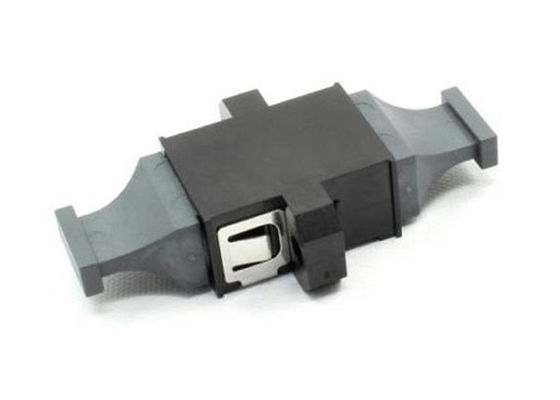

This MPO MTP Connector Adapter has a SC Footprint, Full Flange, is black and comes with 2 Dust caps. The adapter body is made of Polyethermide, the spring clip is made of stainless steel, and the dust cap is made of polycarbonate, all to reduce the potential for debris generation.
This adapter works for any MPO MTP Connector from 4 fiber to 72 fiber. Widely used in trunk cabling and casettes, this adapter meets appropriate standards and is perfect for your paralell optics and MTP Adapter needs.

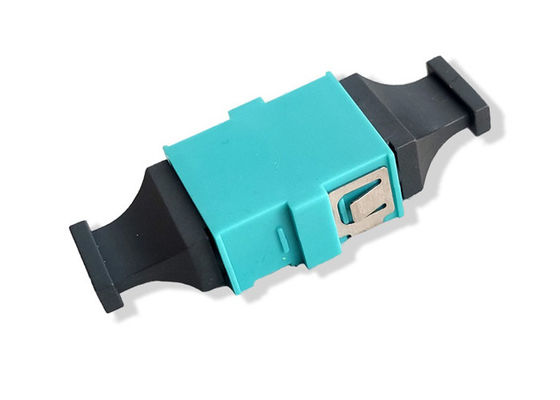

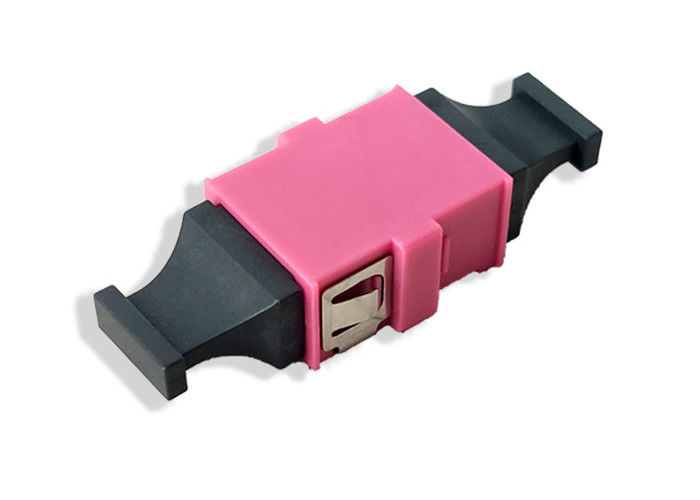

This MPO MTP adapter also has flangeless type, Aqua, Violet, and Gray color avaliable.
Haiyu Optical provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, MTRJ, MPO, MU, SMA, E2000, DIN style fiber optic adapters for both multimode and single-mode fiber applications.
Specifications:
| Specification |
Unit
|
SC
|
|||
|
SM
|
MM
|
||||
|
PC
|
UPC
|
APC
|
PC
|
||
|
Insertion loss
|
dB
|
≤0.3
|
≤0.2
|
≤0.3
|
≤0.3
|
|
Return Loss
|
dB
|
≥45
|
≥50
|
≥60
|
≥30
|
|
Interchangeability
|
dB
|
≤0.2
|
|||
|
Repeatability
|
dB
|
≤0.2
|
|||
|
Mechanical endurance
|
Time
|
>500
|
|||
|
Operating temperature
|
°C
|
0~70
|
|||
|
Storage temperature
|
°C
|
-45~85
|
|||
Application:
