LC UPC Quad Optic Adapter APC Plastic Singlemode Zirconia With Internal Shutter

large.img.alt
small.img.alt small.img.alt

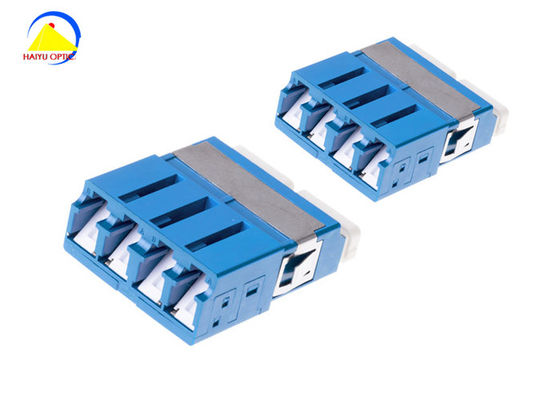

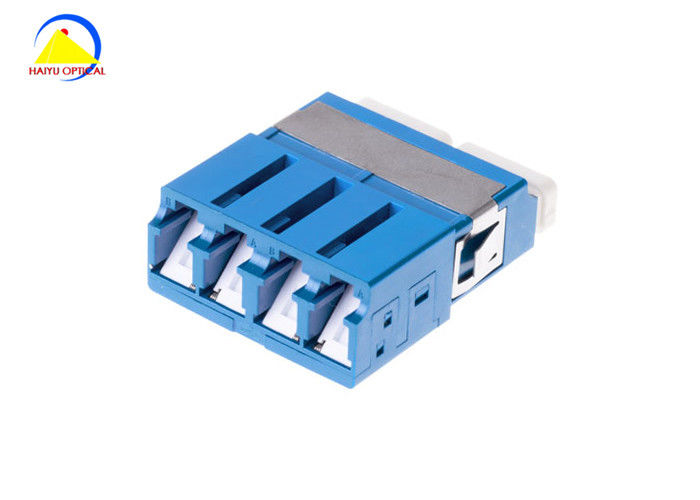

Large Image :  LC UPC Quad Optic Adapter APC Plastic Singlemode Zirconia With Internal Shutter

Product Details:
Place of Origin: China
Brand Name: Haiyu Optical
Certification: CE, ISO9001, Rohs
Model Number: HYG-ADP-LC-011
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Packed in Blister box and carton
Delivery Time: 2-3 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000pcs per day
Detailed Product Description
Product Name: LC Internal Shutter Adapter Color: Blue
Insertion Loss: ≤0.2dB Connector Type: LC Quad
Model: Singlemode Housing Material: Plastic
High Light:

LC UPC Quad Optic Adapter

,

APC Plastic Quad Optic Adapter

,

Singlemode Zirconia Fiber Optic Connector

LC/UPC to LC/UPC Quad Adapter with Internal Shutter Fiber Connector Manufacturer & Supplier

This LC Adapter with Internal Shutter is designed to cover the entire coupler hole. These unique adapters virtually eliminate eye exposure to lasers and provide maximum protection from dust and other contaminants. The swing shutter automatically opens as the LC connector is inserted, and closes as it is extracted.

Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, MTRJ, MPO, MU, SMA, E2000, DIN style fiber optic adapters for both multimode and single-mode fiber applications.





LC Internal Shutter Adapter Specifications:



Item LC Internal Shutter Adapter
Mode Single Multi
Housing Color APC=Green,PC=Blue Beige / Aqua / Violet
Main Body Material Plastic
Sleeve Zirconia
Typical Insertion Loss(dB) ≦ 0.15dB
Durability < 0.2dB change, 500mating
Operating Temp. -40℃ ~ +75℃
Storage Temp. -40℃ ~ +85℃





LC Internal Shutter Adapter Features:





  • Unique one-piece design
  • Low insertion loss
  • Easy installation
  • Diversity - Blue, Green, Beige, Aqua. Black and Magenta are available under request
  • Internal and external shutter available for dust protection and eye safety





LC Internal Shutter Adapter Application:



  • CATV
  • Telecommunication networks
  • Local Area Networks (LANs)
  • Metro networks
  • Data processing networks
  • Industrial, military and medical
