LC LC Multimode Fiber Patch Cord Purple Color 850 / 1300NM Wave Length

large.img.alt
small.img.alt small.img.alt

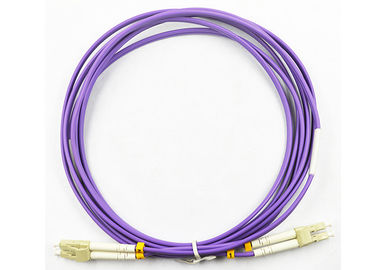

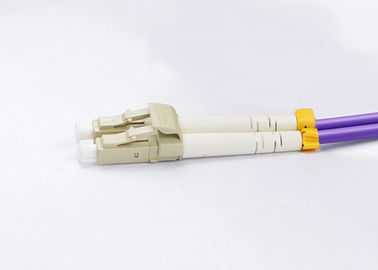

Large Image :  LC LC Multimode Fiber Patch Cord Purple Color 850 / 1300NM Wave Length

Product Details:
Place of Origin: China
Brand Name: Haiyu Optical
Certification: CE, ISO9001, Rohs
Model Number: HYG-PA-OM4-004
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: each packed in pe bag, 400-600pcs/carton
Delivery Time: 2-3 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per day
Detailed Product Description
Product Name: LC LC Multimode Fiber Patch Cord Fiber Type: MM OM4 50/125
Connector Type: LC UPC Fiber Count: Duplex
Length: 1m 2m 3m Or Customized Material: PVC/LSZH
Insertion Loss: ≤0.3dB Return Loss: >=35 DB
Wavelength: 850 Nm,1300nm Application: Communication Equipment,FTTH System
High Light:

duplex fiber patch cord

,

high speed fiber optic cable

Purple OM4 High Speed Optical Cable LC LC Multimode Fiber Patch Cord





Specification:





Connector type FC,SC, ST, LC,MU,MTP,MPO,E2000D4,DIN,MTRJ
Fiber type OM4 50/125 10G
Operation wave length 850nm or 1300nm
Insertion loss ≤0.3db
Return wave loss ≥35db
Mechanical testing

Vibration:10-55hz,0.75mm single amplitude,30min each direction

Drop test Drop highth:1m, fiber longth:1m, drop time:5 times

Durability 1000 times

Anti-pull power :90N

Storage temperature -40-+80°c
Operation temperature

-40-+75°c





Features:



1.Using high precision ceramic ferrule

2.rubbing exactitude and testing completelly

3. low insertion loss and high return loss

4. high stability and repeat

5.be according with the telcordia GR-326-CORE standard

6.ferrule:excellent quality and high intensity zirconium dioxide ceramic ferrule



Product application:



1. Local Area Network

2.Data communication network

3.Telecommunication optical transmission network

4.Optical access network(OAN)

5.Active device termination
