Indoor 48 Port Lc Fiber Optic Patch Panel Cold Rolled Carbon

Certification
China Shenzhen Haiyu Optics Communication Equipment Co., Ltd. certification
China Shenzhen Haiyu Optics Communication Equipment Co., Ltd. certification
I'm Online Chat Now

Indoor 48 Port Lc Fiber Optic Patch Panel Cold Rolled Carbon

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Indoor 48 Port Lc Fiber Optic Patch Panel Cold Rolled Carbon

Product Details:
Place of Origin: Guangdong, China
Brand Name: OEM
Model Number: lc type odf 12 core optical distribution frame
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: $30.00 - $50.00 / Set
Packaging Details: The paking for Fiber Optic lc type odf 12 core optical distribution frame Optical Patch Panel 1set/packing
Supply Ability: 1000 Set/Sets per Week
Detailed Product Description
Name: 19 Intch Lc Type Odf 48 Core Optical Distribution Frame Mode: ODF
Material: Cold Rolled Carbon Sheet Steel Color: Black, White, Etc.
Size: 482*300*340 Mm Port: Shenzhen
Height: 2U Working Temperature: -25~55°C
Weight: 11kg Type: Rack Mounted And Wall Mounted
High Light:

48 port Fiber Optic Patch Panel

,

lc odf Fiber Optic Patch Panel

,

OEM carbon Fiber Optic Patch Panel

 Outdoor/Indoor fiber optic 48 port optical distribution frame(odf)



An optical distribution frame (ODF) is a passive device which terminates cables, allowing arbitrary interconnections to be made.


1. DESCRIPTION

            The 3U closed frame Optical Distribution Frame is a modulated design with drawable trays inside and constructed from cold-rolled steel. It is available unloaded or pre-installed with your choice of fibre optic adapters and pigtails. It is ideal for indoor fibre optic cables connection storage, distribution and management. It features an interchangeable adapter plate for ease of adapter swapping.



2. Dimensions
Length: 482m x Width: 300mm x Height: 340mm





3 .FEATURES
» Latch door
» Constructed from cold rolled steel
» Can be rack mounted and wall mounted
» Can be used in 19’’, 23’’ standard distribution frames
» Suitable for ribbon and single fibre
» Interchangeable adapter plate
» 24C, 36C, 48C, 72C, 96C optional, with or without fibre optic
pigtails and adapters



4. ODF DATASHEET





Environmental temperature:

-25 - 55°C

Relative humidity:

<85%(when the temperature is below 30°C)

Atmosphere pressure:

70~106Kpa

Insulating resistance:

>2×104 MΩ/500VDC

Voltage-resistance strength:

Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.

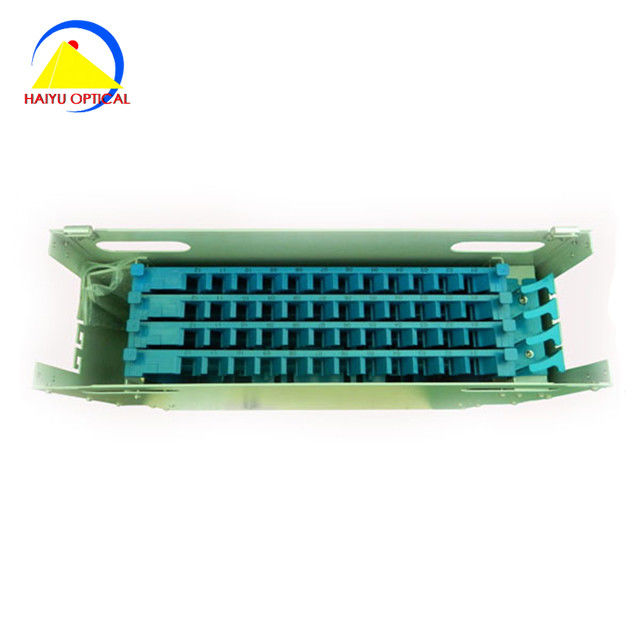

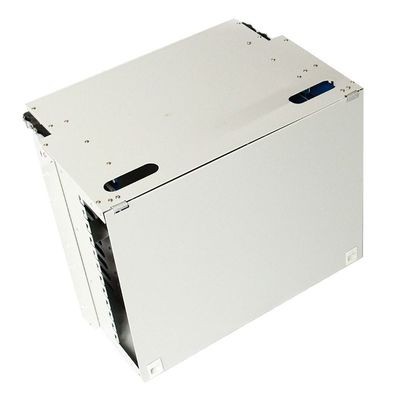

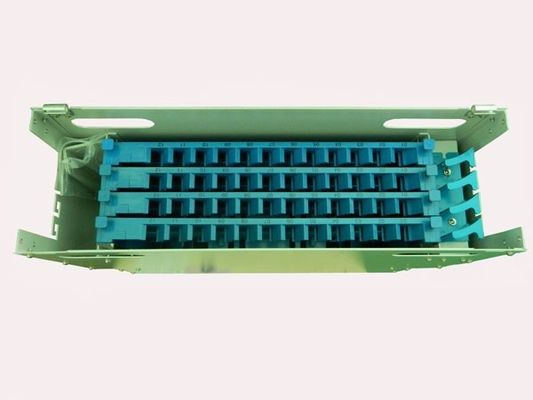

5. ODF FRAME PICTURES

Indoor 48 Port Lc Fiber Optic Patch Panel Cold Rolled Carbon 0Indoor 48 Port Lc Fiber Optic Patch Panel Cold Rolled Carbon 1Indoor 48 Port Lc Fiber Optic Patch Panel Cold Rolled Carbon 2Indoor 48 Port Lc Fiber Optic Patch Panel Cold Rolled Carbon 3Indoor 48 Port Lc Fiber Optic Patch Panel Cold Rolled Carbon 4Indoor 48 Port Lc Fiber Optic Patch Panel Cold Rolled Carbon 5Indoor 48 Port Lc Fiber Optic Patch Panel Cold Rolled Carbon 6Indoor 48 Port Lc Fiber Optic Patch Panel Cold Rolled Carbon 7Indoor 48 Port Lc Fiber Optic Patch Panel Cold Rolled Carbon 8



6 . Are you the manufacturer ?



Yes , we are . We have have workshop for this, if your have time, welcome to visit.



7. How long will take to received  the order ?



Usually it will take 2--4 workingdays.





8. What are the shipping costs?



It will base on the total weight & demention.



9.What is the quality certification?



We are IS09001 , RoHS quality qualified company.



10. Where is our main market?



We supply rack odf cabinets and server cabinets to the datacoms, telecoms and
internet administration industries both in the Asia and throughout Europe & USA
