Product Details:
Payment & Shipping Terms:
|
Connector Type: | FC, SC, LC, ST, E2000 | Finishing: | PC, UPC, APC |
---|---|---|---|
Model: | SM, MM, SX, DX | Sheath Diameter (mm): | 0.9/2.0/3.0 |
Insertion Loss: | SM=<0.2dB | Reflection Attenuation: | PC>= 45 DB, UPC>= 50 DB, APC>= 65 DB |
Interchangeability: | ≤0.20 DB | Telescopic Materials: | Ceramic |
Repeatability: | ≤0.10 DB | Storage Temperature: | -40~85℃ |
Port: | Shenzhen | ||
High Light: | Ceramic Simplex sc optical connector,E2000 fiber cable connector,Green Simplex sc optical connector |

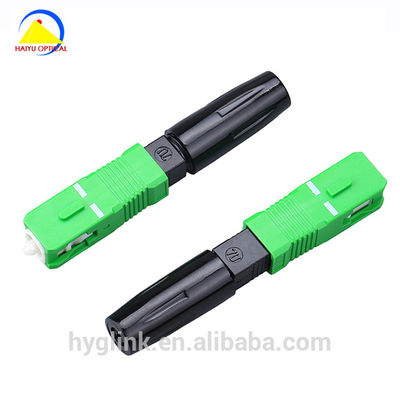

Green SC/APC Simplex FO Fast Connector
Fiber Optic SC UPC /APC FAST CONNECTOR
Description:
the fast connector is designed for high quality and high efficiency for installation.
the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.
adopted fiber pre-installed structure.
could be reused, and convenient for field installation.
Feature:
precise mechanical dimensions
low insertion loss, high return loss
comply standard of IEC61754-4
ROHS compliant
Application:
Premise environments
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber (FTTx) applications
Repair/replacement requirements
Equipment test leads
Specifications:
Item |
Insertion Loss |
Mechanical resistance |
Repeatability |
Operating Temperature |
SM/PC |
≤0.2dB |
200-600g |
0.2dB(1000times) |
-40°C~+80°C |
SM/APC |
≤0.2dB |
200-600g |
0.2dB(1000times) |
-40°C~+80°C |
MM/PC |
≤0.3dB |
200-600g |
0.3dB(1000times) |
-40°C~+80°C |

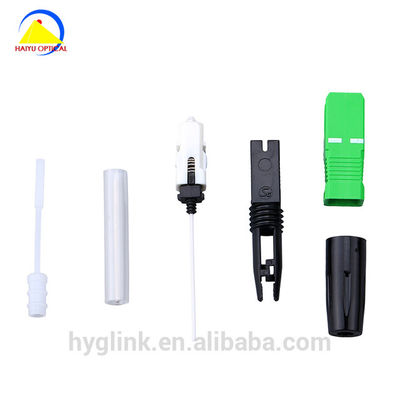

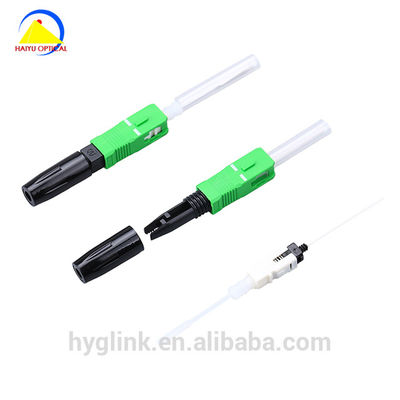

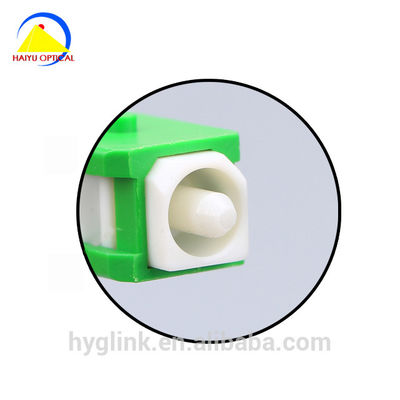

More pictures about fast connectors:
