Product Details:
Payment & Shipping Terms:
|
| Type: | Fiber Adapter & Connectors, Simplex | No. Of Fiber: | 1. |
|---|---|---|---|
| Use: | FTTX | Product Name: | Optical Adapter |
| Connector: | SC APC | Package: | Blister Box |
| Color: | Green | Weight: | 5.5g |
| MOQ: | 100pcs | Model: | Flange |
| Application: | Telecommunication | ||
| High Light: | SC Apc Fiber Optic Adapter,FTTX Simplex Fiber Optic Adapter,FCC Flange Fiber Optic Adapter |
||

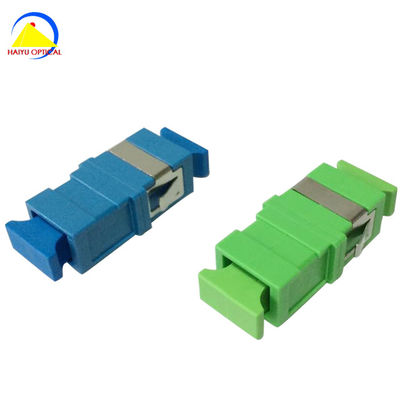

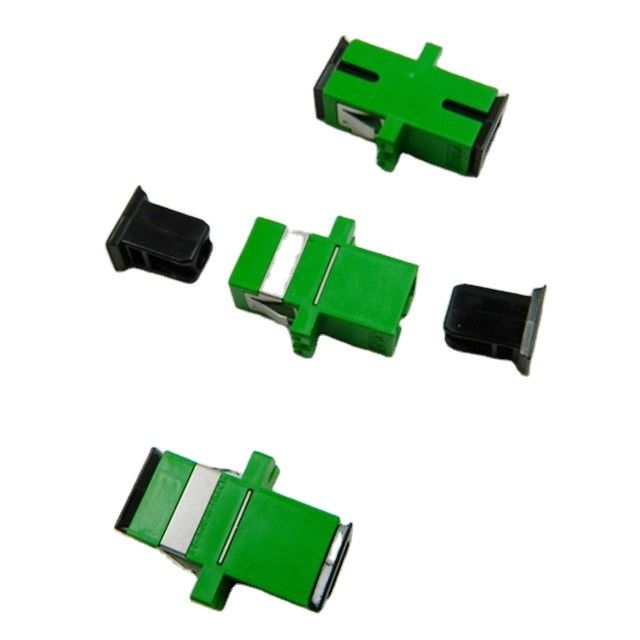

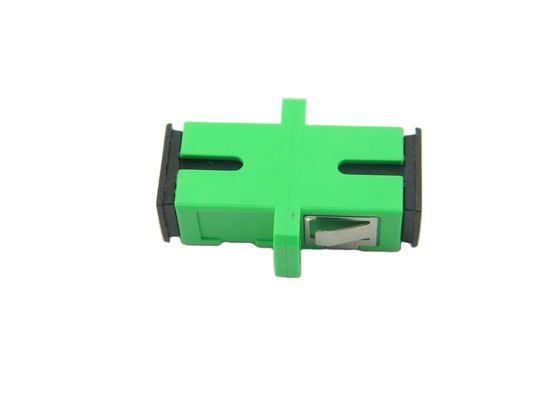

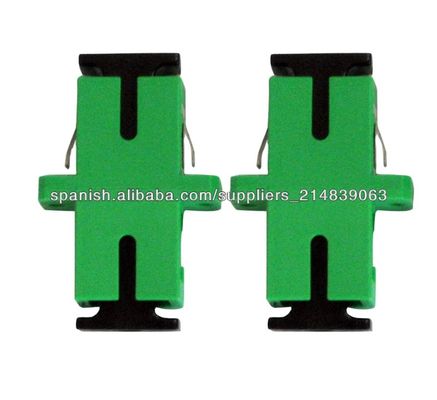

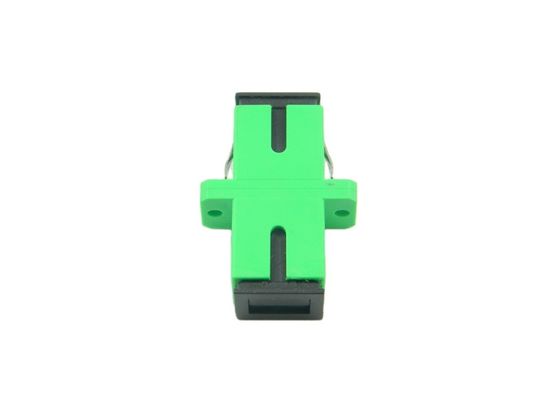

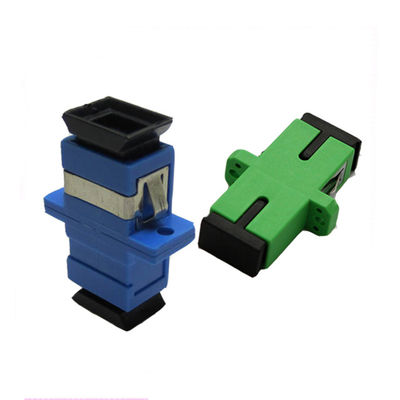

Manufacture Supply SC apc fiber optics simplex adapter
Good compatibility and directivity.
Can provide two kinds of internal sleeve,One is the precision ceramic sleeve,The main brand includs Japan precision engineering technology research institute,Chaozhou tricyclic,shenzheng UPCERA; The second is phosphor bronze sleeve, both can meet your requirements about high dimensional accuracy, good abrasion resistance,and good temperature characteristic
100% of the factory testing guarantee the reliability of the product use.
Precisely external size make it easier to install, flexible and convenient use.
|
Parameter
|
Unit |
SC |
|||
|
SM |
MM |
||||
|
PC |
UPC |
APC |
PC |
||
|
insertion loss |
dB |
≤0.2 |
≤0.1 |
≤0.2 |
≤0.2 |
|
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
|
Interchangeability |
dB |
≤0.2 |
|||
|
Repeatability
|
dB |
≤0.2 |
|||
|
Mechanical endurance |
Time |
>1000 |
|||
|
Operating temperature
|
°C |
-40~75 |
|||
|
Storage temperature |
°C |
-45~85 |
|||
Haiyu Optics, founded in 2007, is focus on design and manufactured fiber optic communication products. It has developed a range of
products including fiber optics like patch cord, adapters attenuator and splitters, optical transceiver modules, media converter, video
transmitter &receiver and FTTH equipments. Widely used in telecom communication, mobile communication, network solution and television
Milestones
2007 Haiyu optics communications technology co., ltd was established in Hongkong.
2009 Shenzhen Haiyu optics communication equipment co., ltd was established in Shenzhen China
Plant area and No. of employees
Amount 2,000 Square meters, around 300 employees in total.
OEM & ODM is accepted, any questions welcome to contact us.
