Product Details:
Payment & Shipping Terms:
|
| Type: | Fiber Adapter & Connectors | No. Of Fiber: | 1. |
|---|---|---|---|
| Use: | FTTX | Adapter Type: | FC, SC, LC, ST, E2000, MTRJ |
| Finishing: | PC, UPC, APC | Model: | SM, MM, SX, DX |
| Sheath Diameter (mm): | 0.9/2.0/3.0 | Insertion Loss: | SM=<0.2dB |
| Reflection Attenuation: | PC>= 45 DB, UPC>= 50 DB, APC>= 65 DB | Telescopic Materials: | Ceramic |
| Storage Temperature: | -40~85℃ | Port: | Shenzhen |

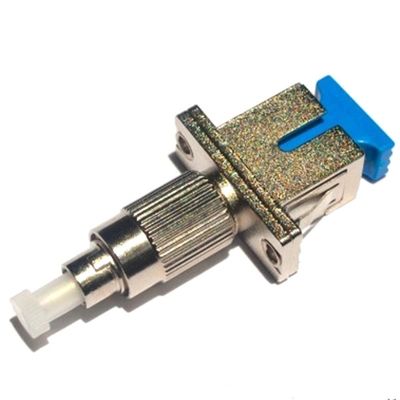

Fiber Optic Hybtid Adapter Male to Female FC SC Fiber_optic_adapters
sc/apc fiber optic adapter/ sma sc fiber optic adapter/ sma st fiber optic adapter
Product characteristic
compatibility, repeatability
high precision size has good compatibility
resistance to friction ceramic casing
environmental stability good
card lock plug
provide separate ST type, SC type, FC type, LC type and so on many kinds of adapter
sc/apc fiber optic adapter/ sma sc fiber optic adapter/ sma st fiber optic adapter
Application
any optical fiber connection
fiber to the home, optical fiber sensors, testing instruments, such as optical fiber point
technical parameters
material:ceramic
repeatability: ≥1000 times
insert loss: SM ≤0.2 dB, MM ≤ 0.3 dB
compatibility: ≤ 0.2 dB
sc/apc fiber optic adapter/ sma sc fiber optic adapter/ sma st fiber optic adapter
| Optical Parameter | W/Japanese Ceramic Sleeve | W/Chinese Ceramic Sleeve | W/P.B Sleeve |
| Insertion Loss | <0.1 dB | <0.2dB | <0.3dB |
| Durability | <0.10 dB typical change,1000 times | <0.2dB typical change,1000 times | <0.30 dB typical change,500 times |
| Operating Temp | -20~75°C | ||
| Storage Temp. | -40~85°C | ||
sc/apc fiber optic adapter/ sma sc fiber optic adapter/ sma st fiber optic adapter

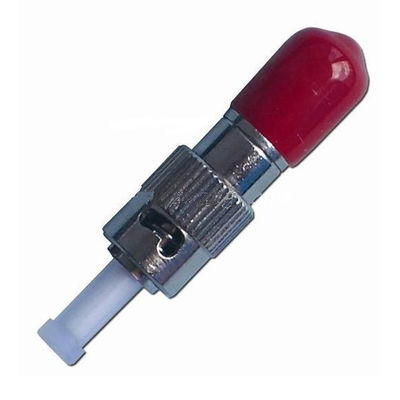

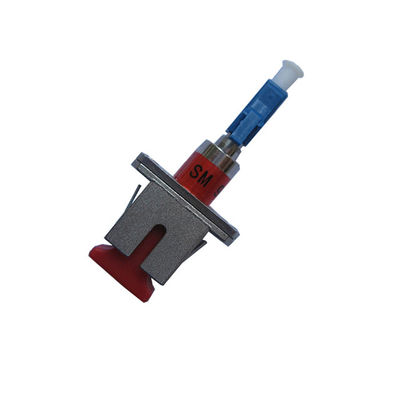

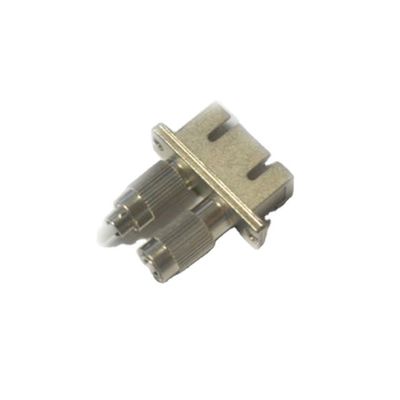

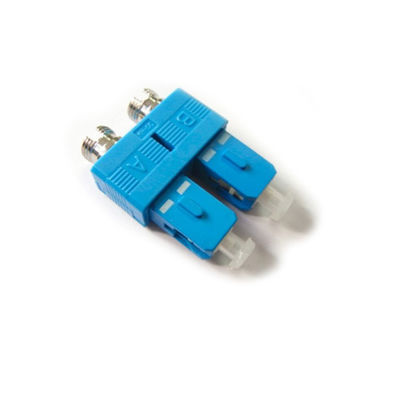

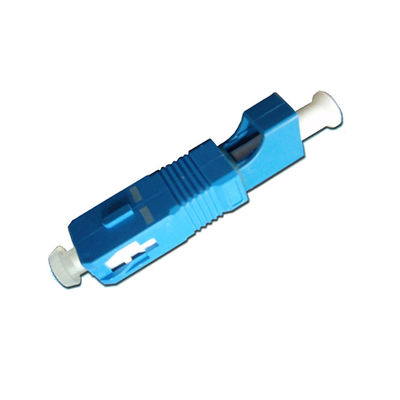

Other types adapter:
Haiyu Optics, founded in 2007, is focus on design and manufactured fiber optic communication products. It has developed a range of
products including fiber optics like patch cord, adapters attenuator and splitters, optical transceiver modules, media converter, video
transmitter &receiver and FTTH equipments. Widely used in telecom communication, mobile communication, network solution and television
Milestones
2007 Haiyu optics communications technology co., ltd was established in Hongkong.
2009 Shenzhen Haiyu optics communication equipment co., ltd was established in Shenzhen China
Plant area and No. of employees
Amount 2,000 Square meters, around 300 employees in total.
OEM & ODM is accepted, any questions welcome to contact us.
