Product Details:
Payment & Shipping Terms:
|
| Storage Temperature: | 45~85℃ | Color: | Blue |
|---|---|---|---|
| Mechanical Endurance: | >1000 | Operating Temperature: | 40~75℃ |
| Interchangeability: | ≤0.2dB | Return Loss: | >=30dB |
| Insertion Loss: | ≤0.2dB | Brand Name: | Manufacture Supply Fiber Optic Sc 10000mb Duplex Adapter |
| Optional Adapter: | SC,LC,FC,ST,MU,MTRJ,MTP/MPO,DIN E2000.etc | Certificate: | RoHS, ISO:9001 |
| Port: | Shenzhen | ||
| High Light: | DIN E2000 Sc Duplex Adapter,sc 10000mb duplex adapter,Fiber Optic Sc Duplex Adapter |
||

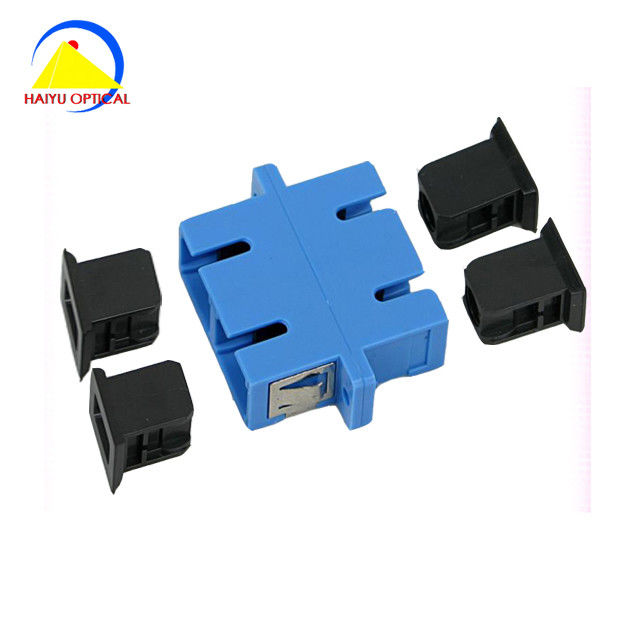

sc duplex adapter ,fiber optic sc duplex adapter:
Good compatibility and directivity.
Can provide two kinds of internal sleeve,One is the precision ceramic sleeve,The main brand includs Japan precision engineering technology research institute,Chaozhou tricyclic,shenzheng UPCERA; The second is phosphor bronze sleeve, both can meet your requirements about high dimensional accuracy, good abrasion resistance,and good temperature characteristic
100% of the factory testing guarantee the reliability of the product use.
Precisely external size make it easier to install, flexible and convenient
|
Parameter
|
Unit |
SC |
|||
|
SM |
MM |
||||
|
PC |
UPC |
APC |
PC |
||
|
insertion loss |
dB |
≤0.2 |
≤0.1 |
≤0.2 |
≤0.2 |
|
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
|
Interchangeability |
dB |
≤0.2 |
|||
|
Repeatability
|
dB |
≤0.2 |
|||
|
Mechanical endurance |
Time |
>1000
|
|||
|
Operating temperature
|
°C |
-40~75 |
|||
|
Storage temperature |
°C |
-45~85
|
|||
