72 Cores LC Duplex Patch Panel , Single Mode Black Box Fiber Patch Panel

Certification
China Shenzhen Haiyu Optics Communication Equipment Co., Ltd. certification
China Shenzhen Haiyu Optics Communication Equipment Co., Ltd. certification
I'm Online Chat Now

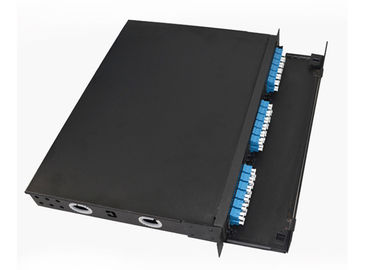

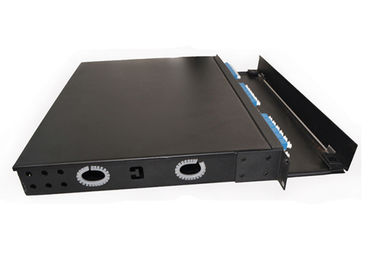

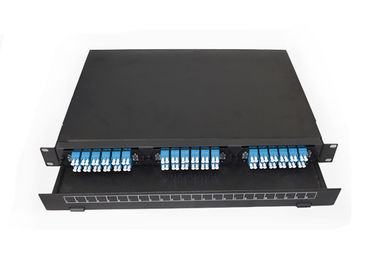

72 Cores LC Duplex Patch Panel , Single Mode Black Box Fiber Patch Panel

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  72 Cores LC Duplex Patch Panel , Single Mode Black Box Fiber Patch Panel

Product Details:
Place of Origin: Guangdong, China(Mainland)
Brand Name: Haiyu Optical
Certification: ROHS, ISO,CE
Model Number: HYG-PP-72F-LC-004
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: foam with box and carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 2000sets per week
Detailed Product Description
Product Name: Fiber Optic LC Patch Panel Port: 72 Cores
Material: Cold Rolled Steel Fiber Type: Singlemode
Operating Temperature: -45℃~+80℃ Warranty: 3 Years
Installation: Rack Mount Application: FTTH FTTB FTTX Network,Telecommunication,
High Light:

mpo patch panel

,

rack mount fiber patch panel

72 Cores Singlemode Rack Mounted 1U Fiber Optic LC Patch Panel





Specification:





PRODUCT PARAMETERS OF OPTICAL PATCH PANEL
Name
FIBER OPTIC PATCH PANEL
Type
1U 19" rack mouted type
Model
3*12 LC duplex
Material
1.3mm sheet metal

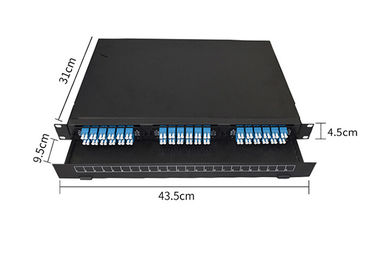

Dimension
485*360*45mm
N.W.
5.5kgs
Color
Black, white optional
Working temperature
-45℃~80℃
Loading

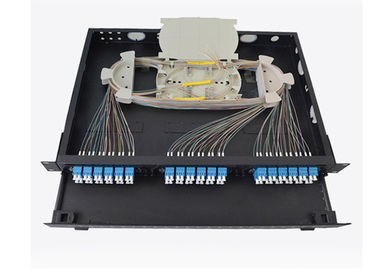

3*12DLC adapter + 72* LC SM 0.9mm pigtail, SC, FC, ST optional provided.





Description:



This rack-mounted patch panel is compatible with both 19" racks, made of cold rolled steel sheet, electrostatic spraying, provide 12 to 48 single and double adapter, available for SC, FC, ST and Duplex LC.



This model has 3 moveable adapter plate, easy to plug in and out.



Features:

  1. Fits 19" wide rack units
  2. Accepts 2 adapter panels, 2 small splice trays, or 1 large splice tray
  3. Occupies 1 RU
  4. Built-in spool for easy cable management
  5. Constructed of high-quality cold rolled steel sheet



Application:

  1. Optical access network (OAN)
  2. Data processing centers/Cable television (CATV)
  3. Local area network (LAN)
  4. Coarse wavelength division
  5. PLC system
  6. FTTH



72 Cores LC Duplex Patch Panel , Single Mode Black Box Fiber Patch Panel 0

Package:



72 Cores LC Duplex Patch Panel , Single Mode Black Box Fiber Patch Panel 1
