Product Details:
Payment & Shipping Terms:
|
Color: | Black | Type: | Case |
---|---|---|---|
Capacity: | 12/24/48 Cores Etc. | Application: | ODF, Patch Panel |
Height: | 1U/2U/3U/4U | Port: | Shenzhen |
Connecotor: | Sc/fc /lc /st | Adapter: | Sc/lc/fc/st |
High Light: | ODF Fiber Optic Termination Box,ISO9001 Fiber Optic Termination Box,Sc Adapter Fiber Optic Termination Box |

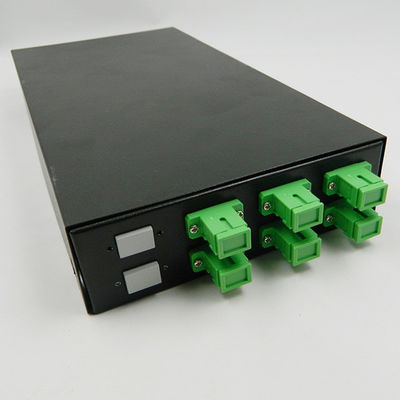

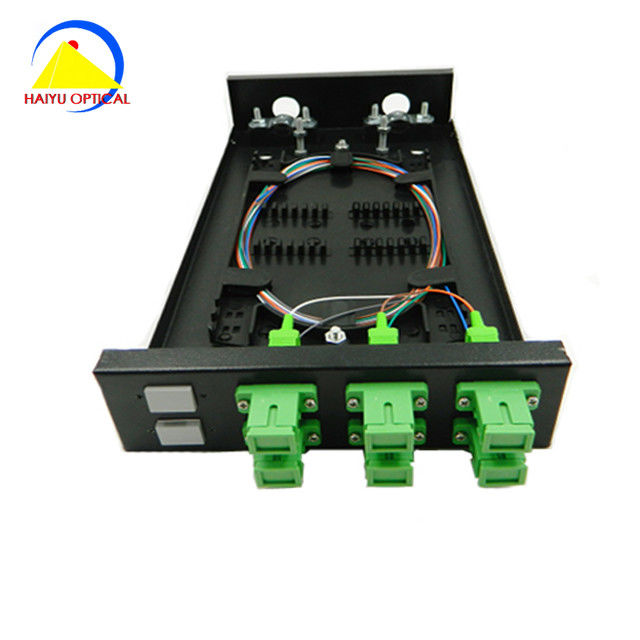

Supply the fiber optic 6 core terminal box ,8 port terminal box with sc adapter
Description: fiber optic distribution frame is the high density fiber optic distribution frame developed by our company. It's suitable for both single core and ribbon fiber cable, especially suitable for indoor optical terminal in optical fiber system
·Features:
Compliant with ISO9001.
The frame adopts front side cable operation, which is good view and save the installation space.

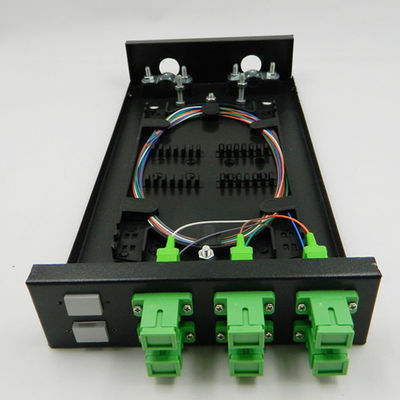

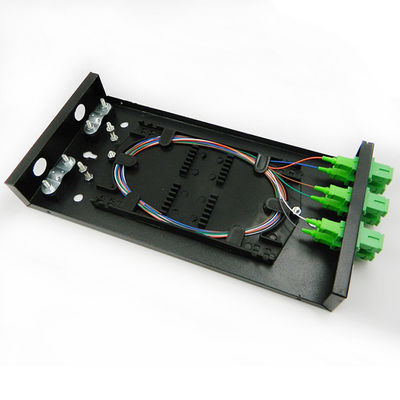

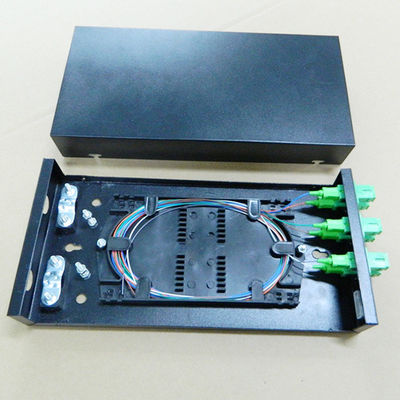

Fiber cable inlet, fiber optic distribution adopts the fiber management structure that design is unique splice and distribution of fiber cable and pigtail, movable connection of pigtail and patch cord is finished in the same fiber management tray.
The movable connector adopts inclined 25 degree installation structure, which ensures the bend radius of pigtail and patch cord; and can also protect eyes from laser.
Reasonable layout makes line clear and protect fiber optic cable.
Front panels suitable for FC, SC, ST adapter.
24 cores |
2 U |
49x30.5x8.9cm |
48 cores |
3 U |
49x30.5x13.35cm |
72 cores |
4 U |
49x30.5x17.8cm |
96 cores |
5 U |
49x30.5x22.25cm |
OEM & ODM is accepted, any questions welcome to contact us.
