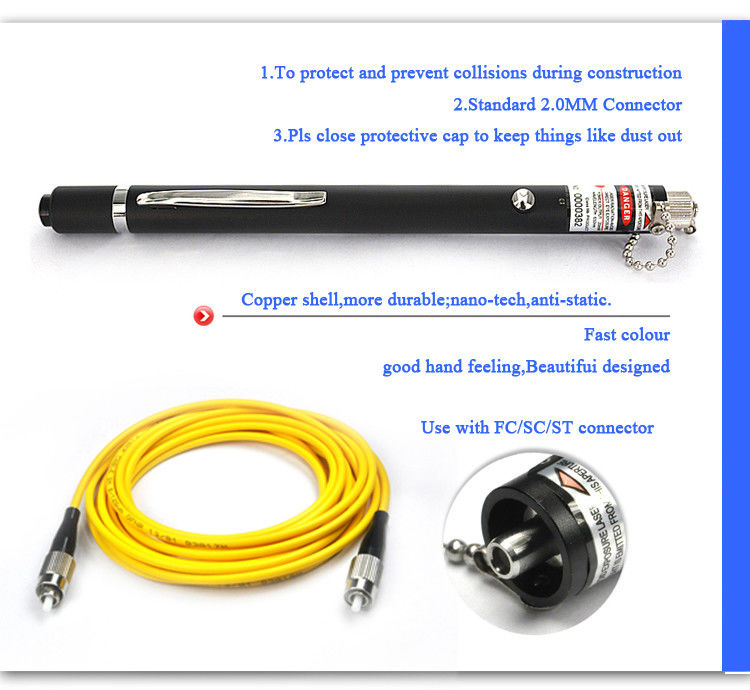

650Nm Visible Laser Light FP-LD Optical Fiber Test Pen

Large Image : 650Nm Visible Laser Light FP-LD Optical Fiber Test Pen

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HYG
Model Number:	HYG-0888, hyg888

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece/Pieces
Price:	$11.00 - $300.00 / Piece
Packaging Details:	International Standard Package
Supply Ability:	10000 Piece/Pieces per Day

Contact Now

Detailed Product Description

Pen-type Visual Fault Locator:	1mw 10mw Pen-type Visual Fault Locator	Central Wavelength:	650nm±10nm (635nm Can Be Required On Req
Emitter Type:	FP-LD	Output Power:	Optional Choice For 1mw, 10mw On Actual Ne
Optical Connector:	2.5mm Universal Connector	Operating Model:	Both CW And Pulse Available
Pulse Frequency:	2~3Hz	Power Supply:	2 AA Alkaline Batteries
Battery Operating Time:	650nm@1mw >=65hour 650nm@10mw>=15hour	Port:	Shenzhen
High Light:	650Nm Visible Optical Fiber Test Pen , FP-LD Optical Fiber Test Pen , CW fiber fault locator pen

Comprehensive 650 nm visible laser light optical fiber test pen

1mw 10mw Pen-type Visual Fault Locator

1mw 10mw Pen-type Visual Fault Locator is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation. It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR

Key Feature
2.5mm universal connector
Operates either in CW or Pulsed
Constant output power
Lower Battery warning
Long battery life (up to 60 hours)

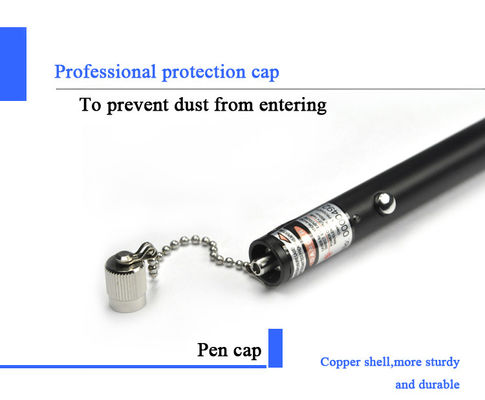

Crash-proof and dust-proof design for laser head
Laser case ground design prevents ESD damage
Burning testing to ensure the reliability.
Portable and rugged, easy to use
Guarantee to CE standards include EMC, EMI, ROHS

Specification

Type	JW3105 Pen-type Visual Fault Locator
Central Wavelength	650nm±10nm (635nm can be required on request)
Emitter Type	FP-LD
Output Power	Optional choice for 1mw, 10mw on actual needs
Optical Connector	2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests
Operating Model	Both CW and Pulse available
Pulse Frequency	2~3Hz
Power Supply	2 AA alkaline batteries
Battery Operating Time	650nm@1mw ≥65hour 650nm@10mw≥15hour Test with Panasonic LR6 AA ALKALINE battery
Operating Temperature	-10~+45 (°C)
Storage Temperature	-40~+70 (°C)
Dimension (mm)	15X180
Weight	120g(Without battery)
