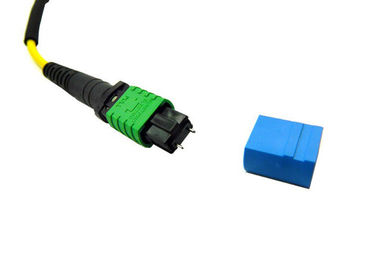

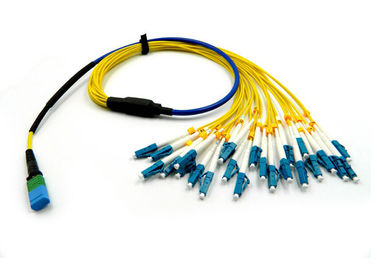

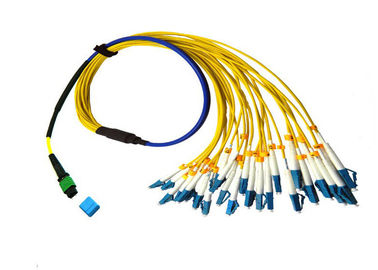

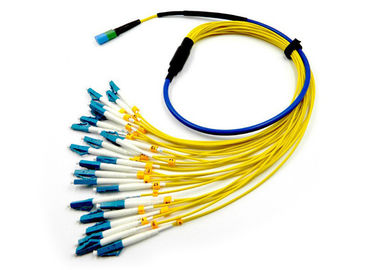

24 Cores Fanout MPO Fiber Optic Patch Cord Single Mode Type Yellow Color

Certification
China Shenzhen Haiyu Optics Communication Equipment Co., Ltd. certification
China Shenzhen Haiyu Optics Communication Equipment Co., Ltd. certification
I'm Online Chat Now

24 Cores Fanout MPO Fiber Optic Patch Cord Single Mode Type Yellow Color

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  24 Cores Fanout MPO Fiber Optic Patch Cord Single Mode Type Yellow Color

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Haiyu Optical
Certification: Rohs,CE, ISO
Model Number: HYG-MTP-LC-SM-24F-1.5M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: polybag+carton or customized
Delivery Time: 2-3 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per day
Detailed Product Description
Name: Fiber Optic MPO Patchcord Fiber Type: 9 / 125 Singlemode
Connector Type: 24F MTP , DLC Fiber Count: 24 Cores
Length: 1.5m Or Customized Color: Yellow
Insertion Loss: <=7.5 DB Return Loss: >= 55dB
Certification: CE/ROHS/ISO9001 Application: FTTH FTTB FTTX Network,Telecommunication
High Light:

outdoor fiber patch cord

,

ribbon fiber optic cable

MTP APC Male to LC Fanout 24 Cores Fanout Optical Fiber Patch Cord Singlemode


Specification:


ParametersMin.TypicalMax.Unit.
Operating WavelengthSingle Mode1310 1620nm
Multi-mode850 1310
MPO Insertion LossSingle Mode  0.6dB
Single Mode Low Loss 0.30.35
Multi-mode  0.75

Single Fiber Insertion Loss
(Fan-out side)

Single Mode  0.2dB
Single Mode Low Loss  0.3
Multi-mode  0.3
Return LossSingle Mode50  dB
Single Mode Low Loss60
Multi-mode30
Operating Temperature- 20 + 70°C
Fiber Type

SM ITU-T G652 and IEC 60793-2-50 B1.3
SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A
OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2

Cable Jacket TypeRibbon / Fan-outLSZH
Cable Jacket ColorYellowG652 and G657 Single mode fiber
OrangeOM2 Multi-mode fiber
AquaOM3 fiber
Flammability RatingIEC-60332-1, IEC-61034, IEC-60754-1 and 2

Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.


Description:

MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.



Features:

  1. Improves and simplifies fiber routing
  2. Decreases fiber management space
  3. Low insertion loss and reflectance
  4. High Density
  5. Snap-In cassette panel for easy installation, removal and expansion


Applications:


1,Optical fiber communications systems;
2,Optical fiber access network;
3,Optical fiber CATV.
4,Optical fiber test equipments;
5,Optical fiber data communications;
6,LAN
