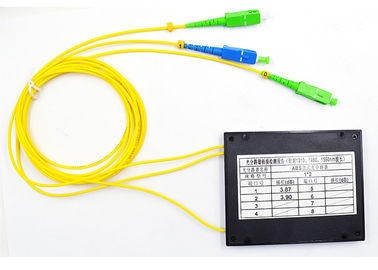

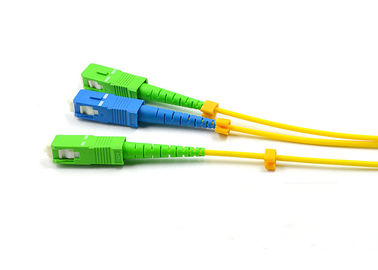

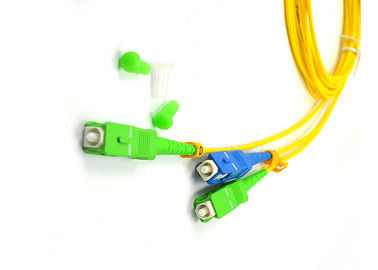

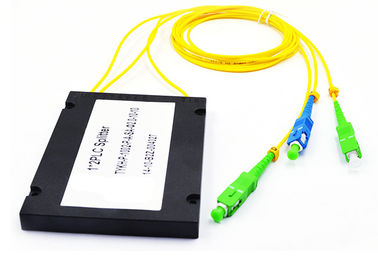

1x2 PLC FFiber Optic Splitter SCUPC In SCAPC Out Type High Durability

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  1x2 PLC FFiber Optic Splitter SCUPC In SCAPC Out Type High Durability

Product Details:
Place of Origin: China
Brand Name: Haiyu Optical
Certification: CE, ISO9001, Rohs
Model Number: HYG-SPL-SC-1*2
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: each packed into a inner box, 100-200pcs/carton
Delivery Time: 2-3 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, L/C
Supply Ability: 1000pcs per day
Detailed Product Description
Product Name: Fiber Optic Splitter Box Capacity: 1x2
Connector: SC/APC/UPC Wavelength: 1260~1650nm
Operating Temperature: -40 To +85 Degree Warranty: 1 Years
Fiber Type: G.657A With 2.0mm Loose Tube Application: FTTH FTTB FTTX Network
High Light:

fiber optic plc splitter

,

multimode fiber optic splitter

1x2 PLC Fiber Optic Splitter Box Cassette Type SCUPC In SCAPC Out





Product Description:



PLC splitter is an optical power distribution component based on silica optical waveguide technology. It is widely used in PON networks to realize optical signal power management.





Specification:



Type 1x4 2x4 1x8 2x8 1x16 2x16 1x32 2x32 1x64
Fiber Type 9/125um SMF28e or customer specified
Operation Wavelength 1260~1650nm
Insertion Loss (dB)(Typ) <7.1 <7.3 <10.0 <10.3 <13.5 <14.0 <16.8 <17.3 <20.0
Insertion Loss (dB)(Max)1 <7.5 <7.7 <10.5 <10.8 <14.0 <14.7 <17.5 <18 <20.3
Uniformity (dB)(Max) <0.7 <1.0 <1.0 <1.2 <1.5 <2.0 <2.0 <2.5 <2.5
Polarization Dependent Loss (dB)(Max) <0.3 <0.40 <0.30 <0.40 <0.3
Directivity (dB)(Min) ≥55
Return Loss (dB)(Min) ≥55

Operating Temperature

( oC)

-40 to +85

Storage Temperature

( oC)

-40 to +85



Insertion loss is excluding connector loss at typically 0.2dB.



Product Types:

  • PLC Splitter Modules
  • Blockless PLC Splitters
  • PLC Splitter Boxes





Benefits:



  •  Low insertion and low PDL
  •  Excellent environmental stability
  •  Compliant with Telcordia GR-1209/1221-Core
  •  Good uniformity
  •  Compact Size





Product application:

  •  FTTx (FTTP, FTTH, FTTN, FTTC)
  •  Passive Optical Networks (PON)
  •  Local Area Networks (LAN)
  •  CATV system
  •  Test equipment





1x2 PLC FFiber Optic Splitter SCUPC In SCAPC Out Type High Durability 0
