Product Details:
Payment & Shipping Terms:
|
| Product Name: | Optical Splitter 1 In 2 Out | Capacity: | 1x2 |
|---|---|---|---|

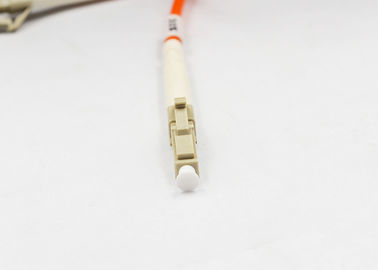

| Connector: | ST, LC, FC, ST Avaliable | Wavelength: | 1260~1650nm |
| Operating Temperature: | -40 To +85 Degree | Warranty: | 1 Years |
| Fiber Type: | Multimode 50/125um | Application: | FTTH FTTB FTTX Network |

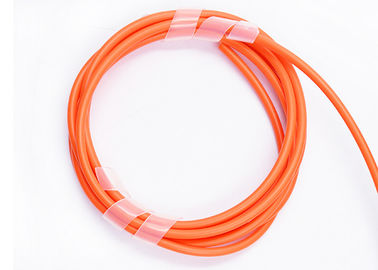

| Type: | FBT Optical Couplers | Fiber Length: | 1m Or Customized |
| High Light: | fiber optic plc splitter,multimode fiber optic splitter |
||

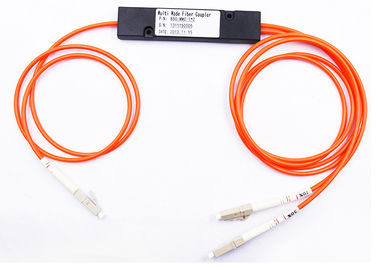

1x2 Multimode Optical Splitter 1 In 2 Out FBT Optical Couplers
Product Description:
We produces high performance FBT type optical couplers / splitters. They provide a reliable solution to split / combine signals, and are widely used in telecommunications, CATV, test equipment and etc. Our products are trusted by well-known domestic and overseas telecommunication operators and system suppliers.
Specification:
| Type | 1x2 | 1x3 | 1x4 | 1x5 | 1x6 | 1x8 |
| Fiber Type | SM fiber (G652D, G657A) | |||||
| Operation Wavelength | 1310±20/1550±20nm | |||||
| Insertion Loss (dB)(Max) | <3.6 | <5.6 | <7.2 | <8.2 | <9.5 | <10.7 |
| Uniformity (dB)(Max) | <0.5 | <0.6 | <0.8 | <1.2 | <1.5 | <1.7 |
| Polarization Dependent Loss (dB)(Max) | <0.2 | <0.2 | <0.2 | <0.3 | <0.3 | <0.30 |
| Directivity (dB)(Min) | ≥55 | |||||
| Return Loss (dB)(Min) | ≥55 | |||||
|
Operating Temperature ( ℃) |
-10 to +70 | |||||
|
Storage Temperature ( ℃) |
-40 to +85 | |||||
Values are under: Dual window; Even coupling ratio; 1 input port; without connectors
Features:
Applications:
Packaging Information:
| SS Tube (mm) | ABS Box (mm) | LGX (mm) | ||
| Φ3x54 | 90x20x10 | 100x80x10 | 140x115x18 | 140x115x18 |
| A | B | C | D | F |
