Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic PLC Splitter | Capacity: | 1x16 |
|---|---|---|---|
| Connector: | ST, LC, FC, ST Avaliable | Wavelength: | 1260~1650nm |
| Operating Temperature: | -40 To +85 Degree | Warranty: | 1 Years |

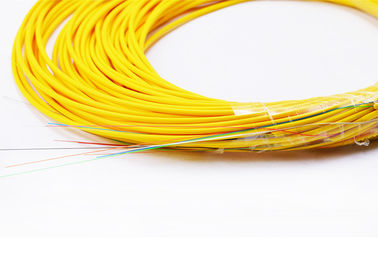

| Fiber Type: | G.657A With 2.0mm Loose Tube | Application: | FTTH FTTB FTTX Network |

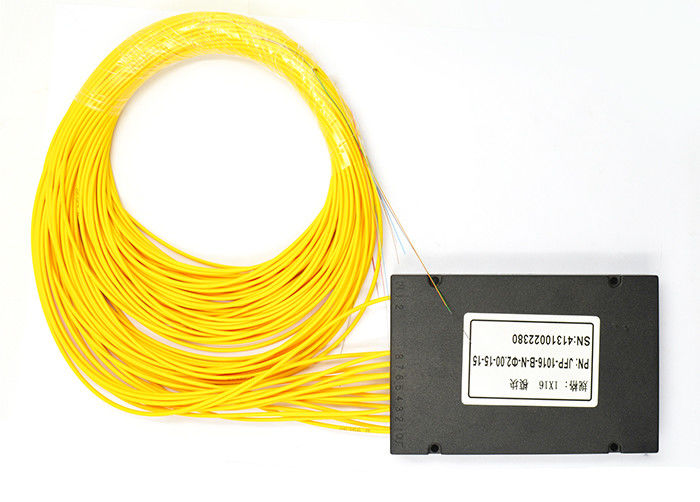

| Type: | ABS Box Type PLC | Fiber Length: | 1m Or Customized |
| High Light: | passive optical splitter,multimode fiber optic splitter |
||
1x16 Fiber Optic PLC Splitter SC LC FC ST Connector Avaliable
Product Description:
PLC splitter is an optical power distribution component based on silica optical waveguide technology. It is widely used in PON networks to realize optical signal power management.
Specification:
| Type | 1x4 | 2x4 | 1x8 | 2x8 | 1x16 | 2x16 | 1x32 | 2x32 | 1x64 |
| Fiber Type | 9/125um SMF28e or customer specified | ||||||||
| Operation Wavelength | 1260~1650nm | ||||||||
| Insertion Loss (dB)(Typ) | <7.1 | <7.3 | <10.0 | <10.3 | <13.5 | <14.0 | <16.8 | <17.3 | <20.0 |
| Insertion Loss (dB)(Max)1 | <7.5 | <7.7 | <10.5 | <10.8 | <14.0 | <14.7 | <17.5 | <18 | <20.3 |
| Uniformity (dB)(Max) | <0.7 | <1.0 | <1.0 | <1.2 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
| Polarization Dependent Loss (dB)(Max) | <0.3 | <0.40 | <0.30 | <0.40 | <0.3 | ||||
| Directivity (dB)(Min) | ≥55 | ||||||||
| Return Loss (dB)(Min) | ≥55 | ||||||||
|
Operating Temperature ( oC) |
-40 to +85 | ||||||||
|
Storage Temperature ( oC) |
-40 to +85 | ||||||||
Insertion loss is excluding connector loss at typically 0.2dB.
Product Types:
Features:
Applications:
