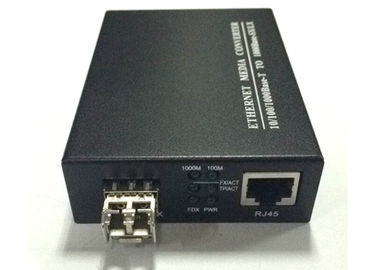

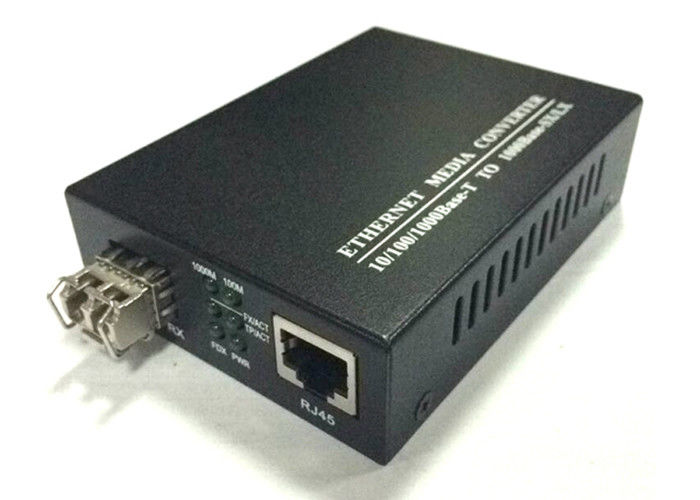

100M Rate Black Box Media Converter , SFP Port Single Mode Fiber Converter

large.img.alt
small.img.alt small.img.alt

Large Image :  100M Rate Black Box Media Converter , SFP Port Single Mode Fiber Converter

Product Details:
Place of Origin: China
Brand Name: Haiyu Optical
Certification: CE, ISO9001, Rohs
Model Number: HYG-MC-100M-SM-005
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: Negotiable
Packaging Details: 40-60pairs/carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, L/C
Supply Ability: 500pcs per day
Detailed Product Description
Product Name: Fibre Optic Media Converter Wavelength: 1310/1550nm
Power Supply: DC5V2A Color: Black
Connector: SFP/RJ45 Fiber Type: Single Fiber,Singlemode
Fiber Port: SFP Port Fiber Distance: 20km
Rate: 10/100M Size: 94*70*26mm
High Light:

single mode fiber converter

,

fiber optic transmitter and receiver

100M 20KM Single Mode SFP Dual Fibre Optic Media Converter​





Product Description:



10/100M SFP Optical Media Converter, also called Ethernet to fiber Converter or copper to fiber converter, supports two types media for network connection such as 10/100Base-TX and 100Base-FX. The media converter is designed with a switch controller and buffer memory that connects two types segments to operate smoothly, the flexible SFP slot design makes it easy for users to use different SFP modules according to their needs. With internal or external power unit, it provides good stability and reliability.

The HD-1201-SFP can be put in 14-slot rack chassis for centralized management.







Specification:

Parameter Specifications
Standard IEEE 802.3/802.3u 10/100Base-TX; 100Base-FX
Optical interface LC
Wavelength 850nm/1310nm/1550nm(Option)
Ethernet connector One RJ45 connector, connected to STP/UTP category-5 twisted pair One SFP Port
UTP Cable Cat. 5 cable up to 100m
Data Transfer Rate 200Mbps for full-duplex at 100Mbps speed
TP Flow Control N Way auto-negotiation
Fiber Flow Control N Way at full-duplex mode
General characteristics
Power Requirement

220V(175-260V)AC, 50Hz

DC:48VDC

Operation temperature -10°C – 55° C
Operating humidity 5%~90%
Storage temperature -40°C - 70° C
Humidity 5% - 90% non-condensing
Dimensions 26mm (H) * 70mm (W) * 94 mm (D) (external power supply)









Features:



² Standards: IEEE 802.3/802.3u 10/100Base-TX; 100Base-FX

² High performance data transmission

² Wide dynamic range of IP data packet

² Comprehensive LED support

² Standard Single mode fiber, transmission distance up to 120Km

² One RJ45 100Base-TX ports&one SFP slot

² Auto Half/Full Duplex data mode

² Auto MDI/MDIX provides automatic cross

² CE,FCC,ROHS compliant

² 3-year warranty







Application:

100M Rate Black Box Media Converter , SFP Port Single Mode Fiber Converter 0







100M Rate Black Box Media Converter , SFP Port Single Mode Fiber Converter 1
