Product Details:
Payment & Shipping Terms:
|
| Connector: | N/a | Cable Type: | 4 Pairs Twisted Pair Cable |
|---|---|---|---|
| Color: | Blue | Conductor Material: | Cooper |
| Length: | 305 Meter Per Box | Application: | Network,Telecommunication |
| High Light: | bare copper conductor,cat 6 network cable |
||

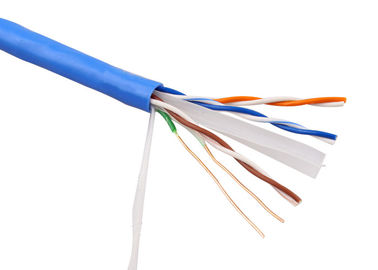

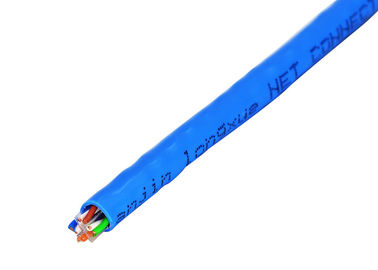

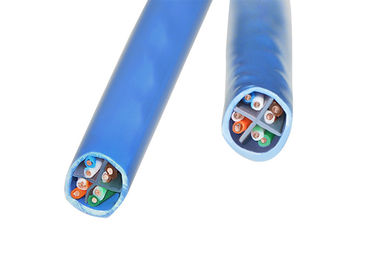

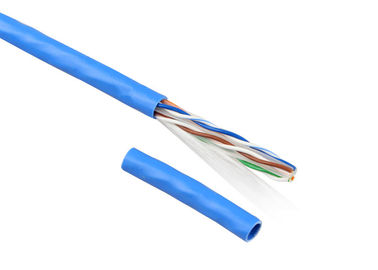

100 Foot Cat 6 Cable Blue Color 305 Meters Per Box
Specification:
| Frequency MHZ | special impedance ΩM |
attenuation Db/100m ≤ |
NTXT attenuation Db/100m ≥ |
far-end crosstalk attenuation Db/100m ≥ |
Return Loss db ≥ |
||
| 1 |
100±15 |
1.9 | 74 | 68 | 20.0 | ||
| 4 | 3.7 | 65 | 56 | 23.0 | |||
| 10 | 5.9 | 59 | 48 | 25.0 | |||
| 16 | 7.5 | 56 | 44 | 25.0 | |||
| 20 | 8.4 | 55 | 42 | 25.0 | |||
| 31.25 | 10.6 | 52 | 38 | 23.6 | |||
| 62.5 | 15.4 | 47 | 32 | 23.5 | |||
| 100 | 19.8 | 44 | 28 | 20.1 | |||
| 200 | 29.0 | 40 | 22 | 18.0 | |||
| 250 | 32.8 | 38 | 20 | 17.3 |
The twisted pair cable used for digital communications, applied in buildings cabling system between patch panels and the output of communication. also used in Residential cabling system between the patch panel and output of communication ,meet the 100MHz data communication. Comply with color coding standard of ANSI/TIA/EIA-568-B
Features:
Transmission frequency of 100MHz, and support for duplex applications
Comply with RoHS standards
Pass UL VW-1 & CSA FT1 vertical flame test
PERFORMANCE:
Operating voltage: 30V
Operating temperature range:
Movable Installation: - 5 ° C to +80 ° C fixed installation: -40 ° C to +80 ° C
Flammability rating: IEC60332-1 CM
DC Resistance at 20 ℃ (Ω / KM) <93.8
Operating Temperature 70 ℃
68% of the propagation velocity
Impedance (ohms) 100 ± 15
Flame Propagation Test to IEC 60332 Part 1 (LSOH) Flame Propagation Test to IEC 60332
