|Ambient Temperature:||- 40 °C ~ + 55 °C||The Atmospheric Pressure:||70 To 106 Kpa|
|Insulation Resistance:||>=2 X 104 MΩ||Service Life:||30 Years|
|Sheath Size(h*diameter):||510mm*230mm||The Maximum Capacity (core):||144 Core|
|Fiber Optic Cable Quality:||6 Core||Cable Diameter:||23mm(max)|
non puncture fiber optic closure,
106 kpa pc fiber optic closure,

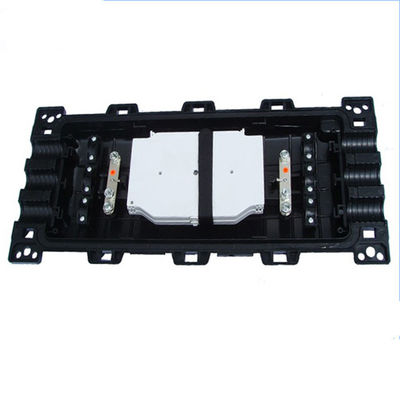

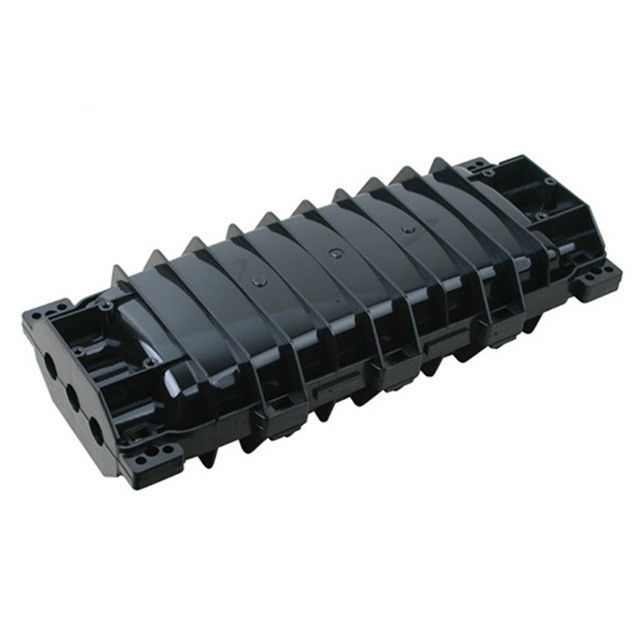

96 core Horizontal splice closure
Fiber Optic Joint Closure Box For Fiber Solution
max 96 core Horizontal splice closure
Components:Seal tape, Insulation tape, Nylon tie, optical cable heat shrinkable sleeve, mental hook, seal fittings, numeral bar, retaining ring
Environmental temperature: -40°C to +85°C
Optic property:The spare fiber coiled in the fiber emplacing device; the fiber connector won’t attenuate during the FOSC installation operation period.
Seal Performance: After the closures are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.
Re-encapsulation Performance:The closures are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressureafter three times of repeat encapsulation
Voltage-resistance strength:Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
Span-life: 30 years.
It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network
Uses and properties:
It is belonged to open structure airproof tie-in system of machine pressure.
It isused for the protective connection between two or more optical cables
Suitable for single core fiber optic cable and ribbon fiber optic cable
Main Technical Indexes:
1.Airproof performance: Airing pressure inside
,pointer immovability after 24 hours or no air bell within 15min when parked in the common temperature water.
2. Re-encapsulation performance: no change in the index of air-proof performance after three times of repeat encapsulation
The maximum capacity (core)
Fiber optic cable quality of import and export
